Property: Sirata Beach Resort
Asset: New commercial resort pool (pre‑construction phase)
Location: St. Petersburg Beach, FL (Pinellas County)
Environment: Coastal / barrier island with high groundwater table and sandy soils

Project Goals:

1. Provide deep foundation support beneath the pool footprint before concrete placement.
   2. Mitigate risks associated with uplift pressure, buoyancy, and soil variability.
   3. Deliver a clean, spec‑driven installation that integrates seamlessly with the pool contractor’s schedule.
   4. Reduce long‑term liability and maintenance risks for a high‑value hospitality asset.

In coastal resort construction, pools are not just amenities—they are brand features. Failure is not an option, and prevention is always preferable to remediation.

Building near the Gulf of Mexico introduces several geotechnical realities that can’t be ignored:

1. High Groundwater & Uplift Risk

In beach environments, groundwater often sits just feet below grade. When a pool is drained for maintenance—or during extreme storm events—hydrostatic uplift can exert enough force to literally push a pool shell out of the ground, a phenomenon known as pool popping.

2. Variable Bearing Soils

Barrier‑island soils are typically loose sands with inconsistent density. Shallow foundations may perform adequately under some conditions but can settle or shift as moisture conditions change.

3. Storm Surge & Extreme Weather

Hurricanes and tropical storms introduce rapid groundwater fluctuations, scour, and lateral forces. A pool foundation must resist not only gravity loads, but also uplift and cyclic loading over decades of service.

4. Zero Tolerance for Post‑Construction Failure

For an operating resort, repairing a failed pool foundation after construction would mean extended closures, lost revenue, and reputational damage. The foundation system had to be right the first time.

Why Helical Piers Were the Right Solution

Galvanized steel helical piers are uniquely suited for coastal, pre‑construction pool applications:

• Deep anchorage: Piers are advanced until they reach competent soils capable of resisting both downward loads and uplift forces.
• Torque‑verified capacity: Installation torque provides real‑time confirmation of load capacity—no guesswork.
• Minimal soil disturbance: Ideal for tight resort sites with nearby structures and utilities.
• Immediate load‑carrying capability: No cure time required, keeping construction schedules on track.
• Corrosion resistance: Galvanized steel is well‑suited for coastal exposure.

For Sirata Beach Resort, helical piers offered a predictable, engineer‑friendly solution that aligns with Florida building practices and coastal risk mitigation strategies.

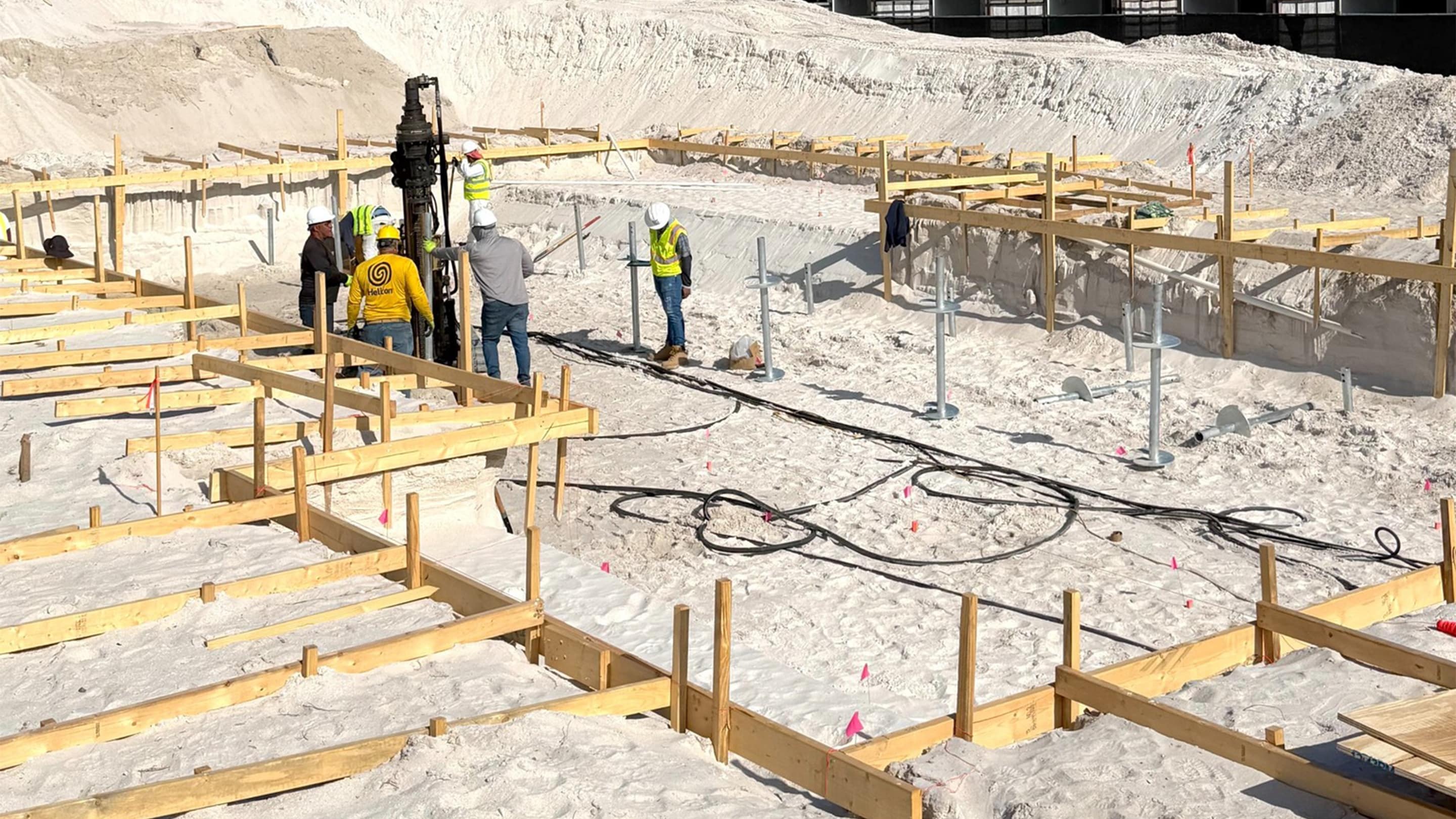

Helicon installed 52 galvanized steel helical piers beneath the planned pool footprint as part of a coordinated foundation stabilization plan.

Installation Scope

• Total Piers Installed: 52
• Pier Type: Galvanized steel helical piers
• Application: Pre‑construction pool foundation support
• Function: Resist settlement, buoyancy, and uplift forces

Installation Process

1. Layout Verification
   Pier locations were verified against construction drawings to ensure alignment with the pool shell, grade beams, and structural loads.
2. Controlled Advancement

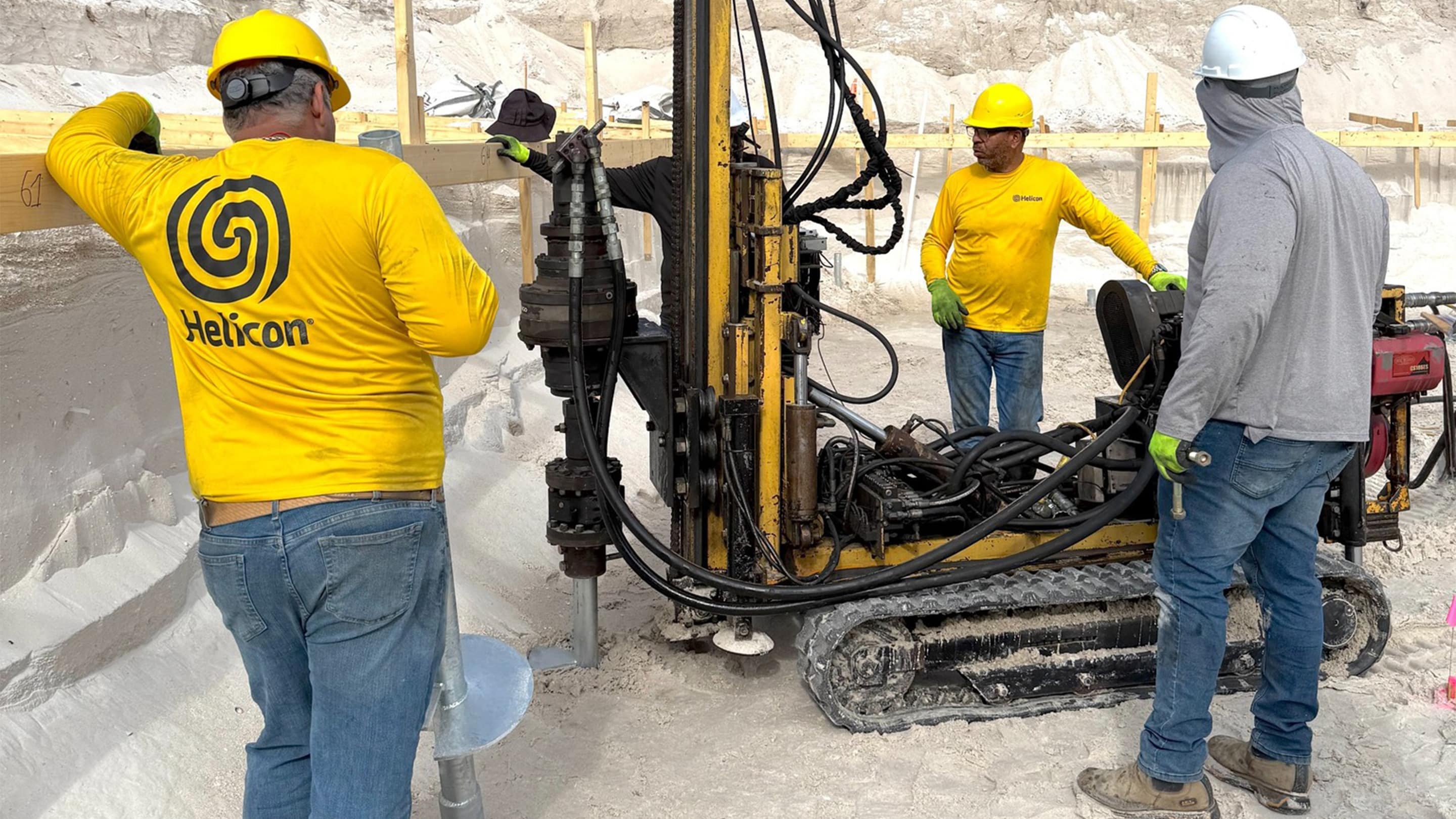

   Each pier was advanced using hydraulic torque motors, monitoring resistance continuously until engineered torque values were achieved.
3. Capacity Confirmation
   Achieved torque values served as confirmation that each pier reached a suitable bearing strata capable of resisting design loads.
4. Elevation & Alignment Control
   Pier heads were cut and set to precise elevations, ensuring seamless integration with the pool contractor’s forming and reinforcing work.
5. Clean Turnover
   The site was left clean and construction‑ready, with no spoils piles, curing delays, or schedule interruptions.

Results & Benefits

• Uplift protection was established before construction
  The pier system provides a positive anchoring mechanism that counters buoyant forces during draining or storm events.
• Settlement risk minimized
  By transferring loads to deeper, more competent soils, the pool is protected from differential settlement common in sandy coastal fills.
• Construction schedule protected
  Immediate load‑carrying capacity allowed the pool contractor to proceed without delays.
• Long‑term asset protection
  The resort gains peace of mind knowing a critical amenity is supported by a deep foundation system designed for coastal conditions.
• Reduced lifecycle costs
  Pre‑construction stabilization is far less expensive than post‑failure remediation, especially in an active hospitality environment.

Why Pre‑Construction Foundation Planning Matters

Too often, foundation stabilization is treated as a reactive service. At Sirata Beach Resort, Helicon helped make it proactive.

Installing helical piers before the pool was built:

– Eliminated the need for invasive repairs later
– Reduced engineering uncertainty
– Improved contractor coordination
– Protected the resort’s revenue stream

For coastal pools, prevention is not optional—it’s essential.

Commercial Developer & Owner FAQs

Why not rely on a conventional pool slab alone?
In high‑groundwater coastal zones, slabs alone may not resist uplift forces. Helical piers provide positive anchoring.

How long do helical piers last?
Galvanized helical piers are designed for decades of service life, even in coastal environments.

Can piers be installed near existing structures?
Yes. Their low‑vibration installation makes them ideal for resorts and active properties.

Do helical piers require curing time?
No. They are load‑ready immediately, which is critical for construction sequencing.
