What is Underpinning?

Underpinning is the process of inserting steel piers (push piers) deeply into the ground beneath a foundation.

To address settlement issues, underpinning can prevent settling as well as raise your home back to it’s original height.

The underpinning methods that Helicon offers are a rock solid foundation repair solution to secure the foundation of a structure.

• A repair project using underpins starts with a bracket that is installed at each pier location in accordance with the structural engineer’s plan.

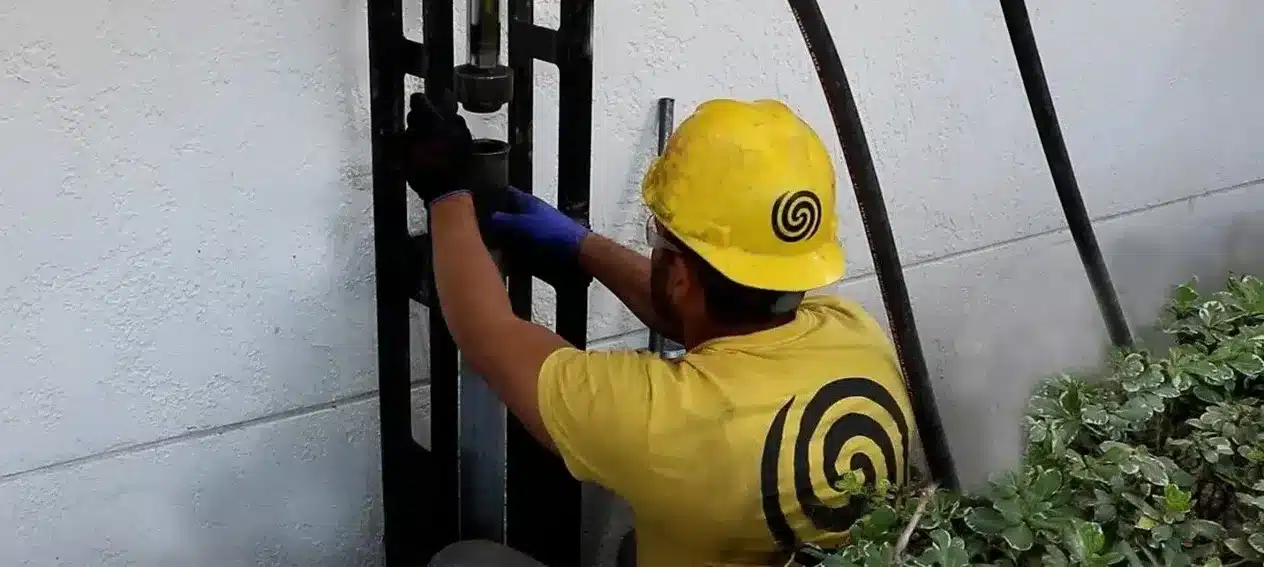

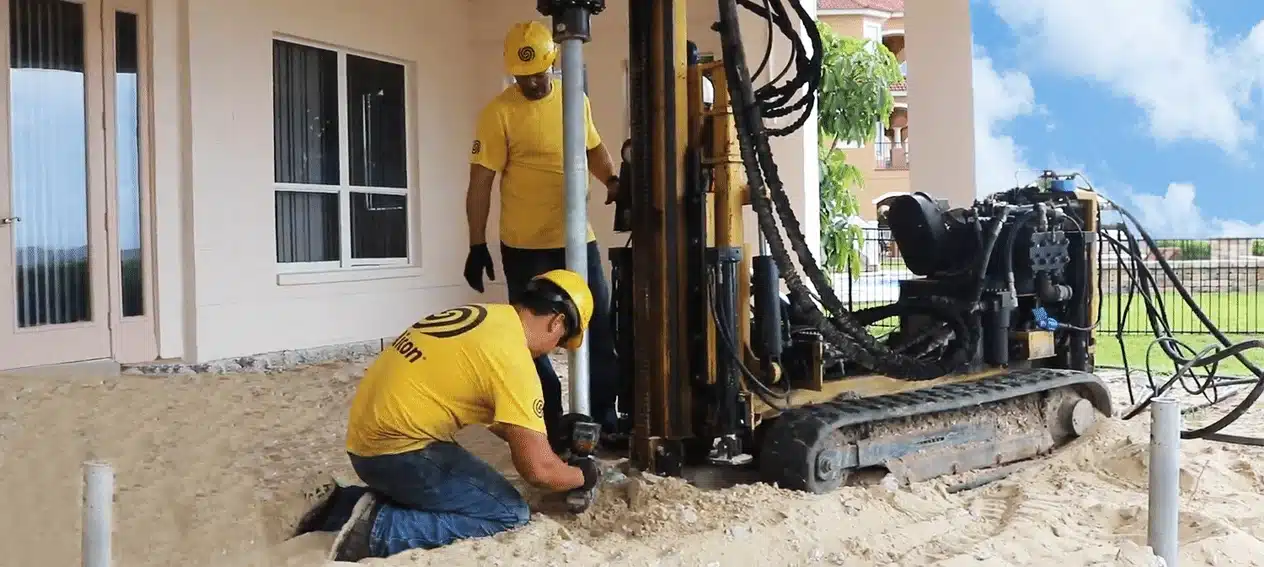

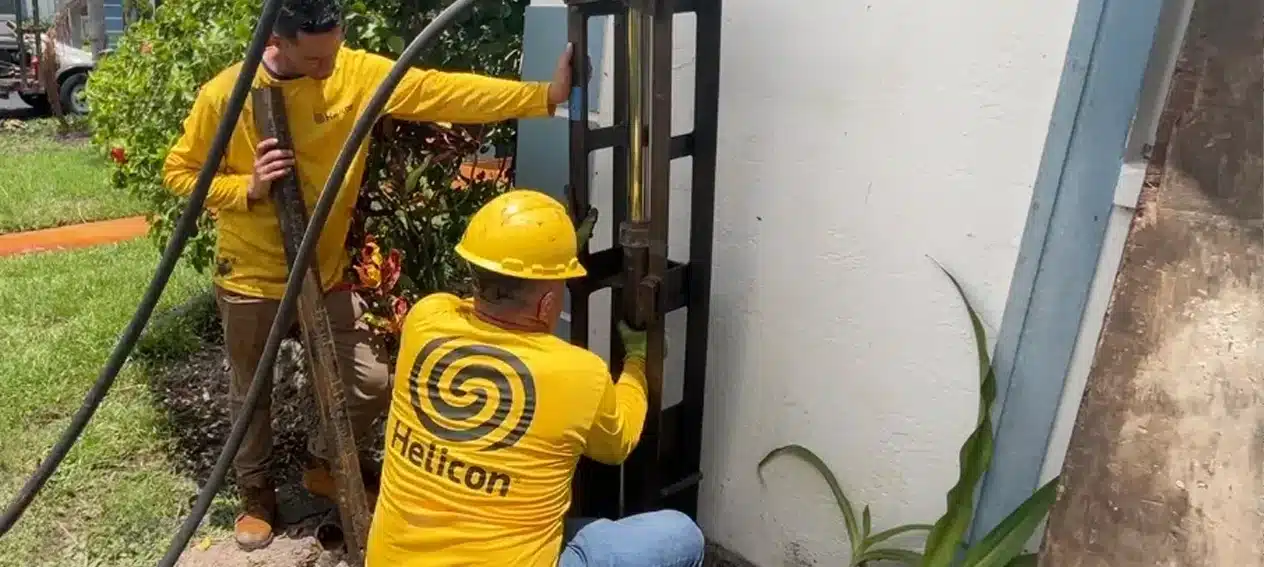

• Then, a large steel frame with a hydraulic ram on top slides onto the bracket and pushes 4ft sections of pipe down through the opening in each bracket. The pipes are driven to the bedrock or load-bearing strata, well below the depth of soils affected by seasonal changes in the water table.
• After the underpinning piers have been driven into the ground and installed to the appropriate load-bearing capacity, they are hydraulically jacked to sufficiently support the structure. At this time, cracks will start to close and doors and windows will function normally again.

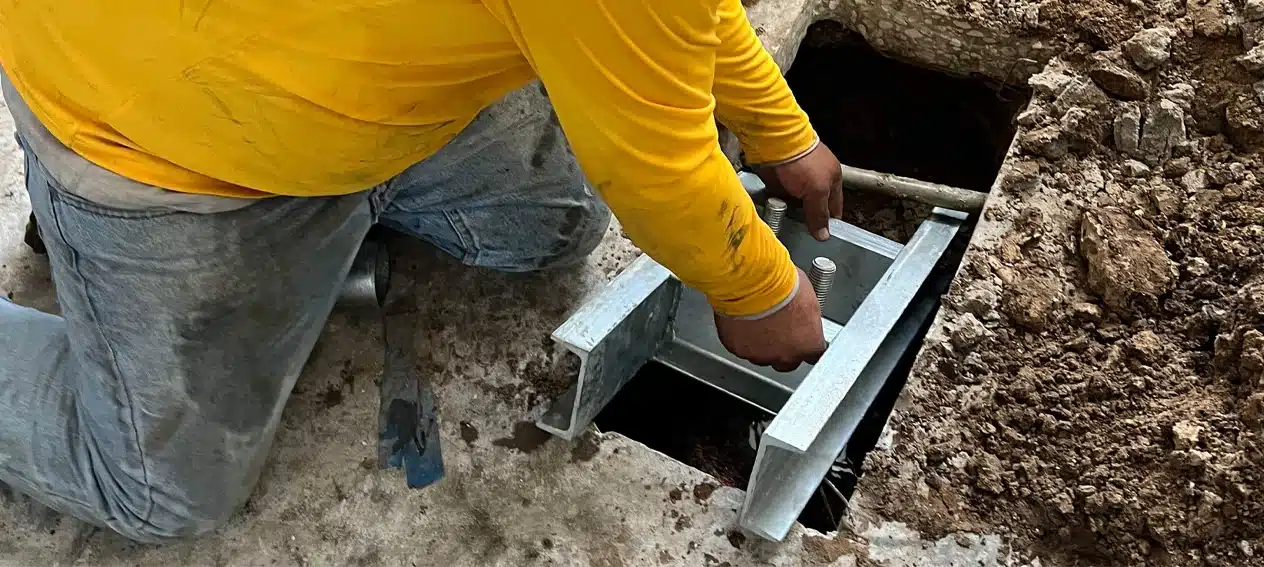

• The brackets are bolted down with a top steel plate leaving a portion of the threaded rods intact. Upon completion of this phase, the underpins are practically invisible after the repair is finished since they are beneath the ground.

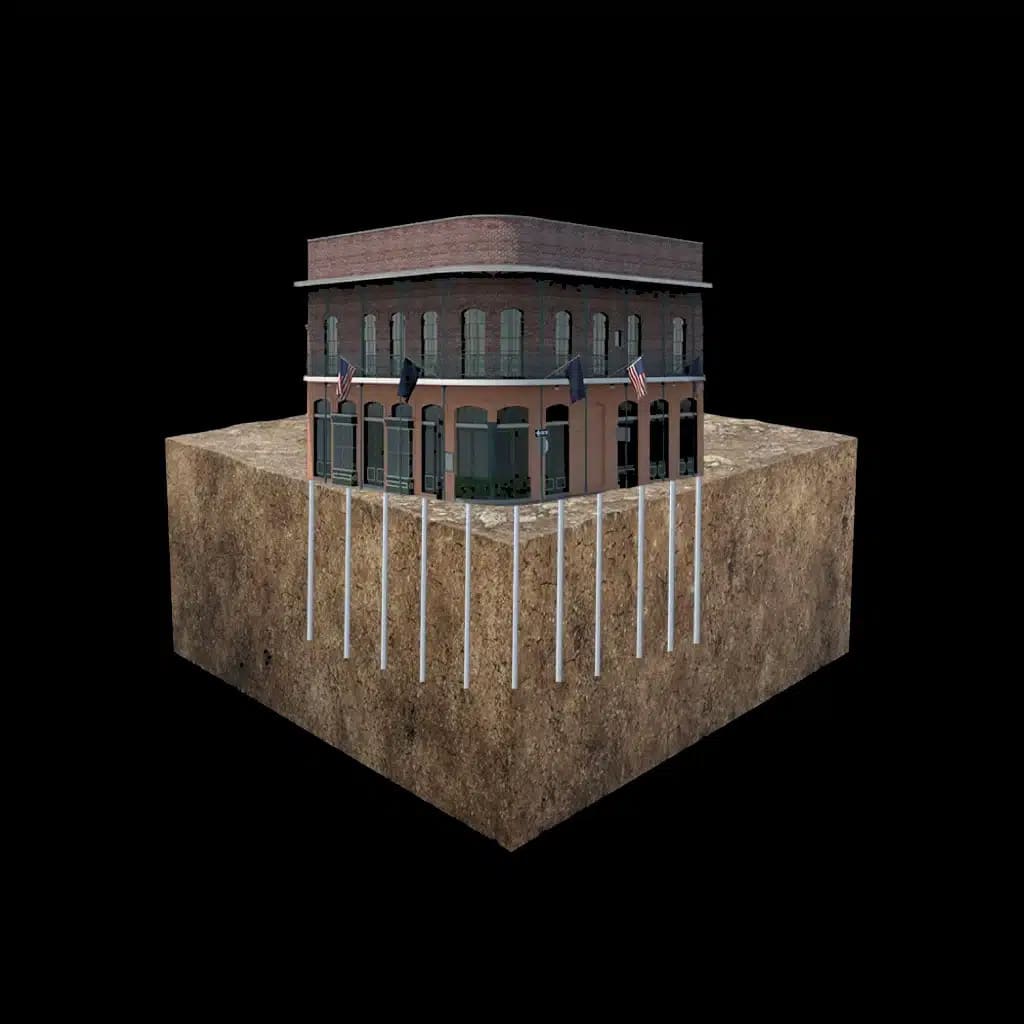

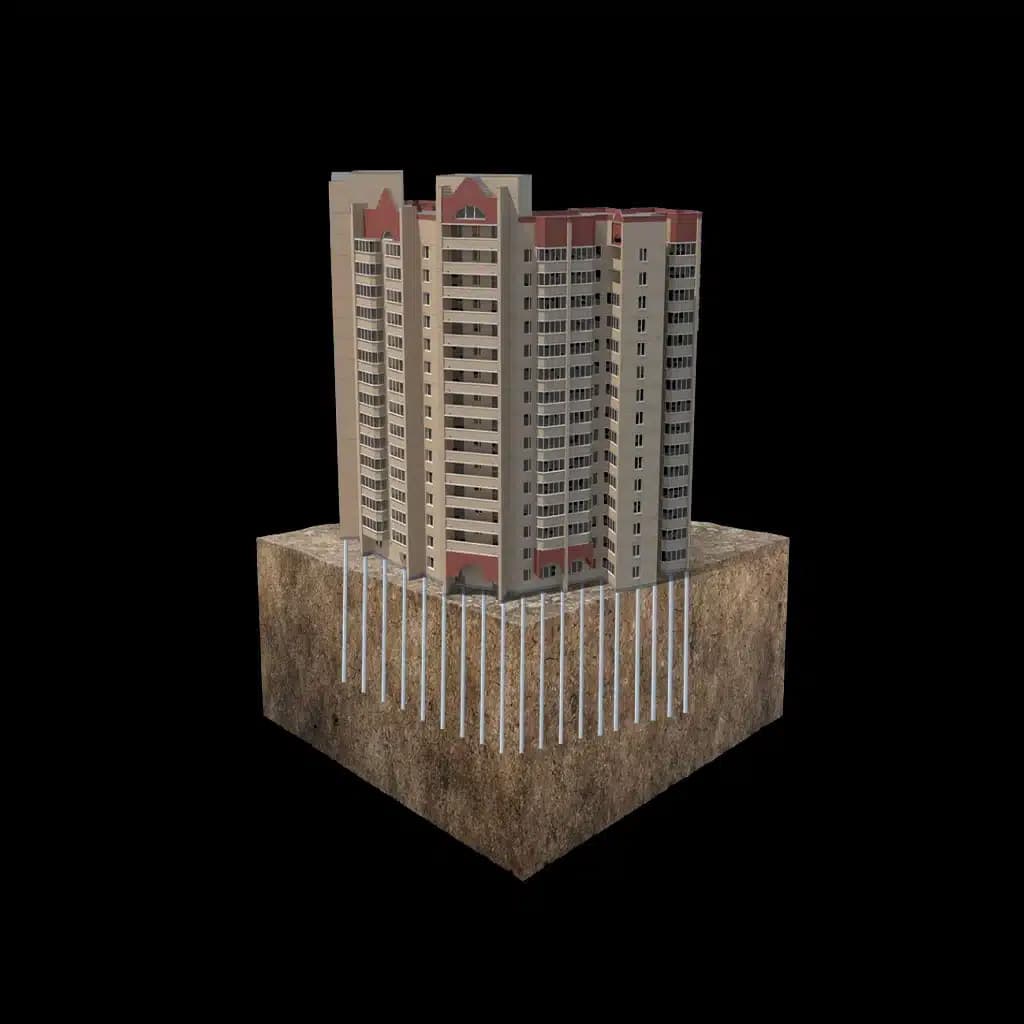

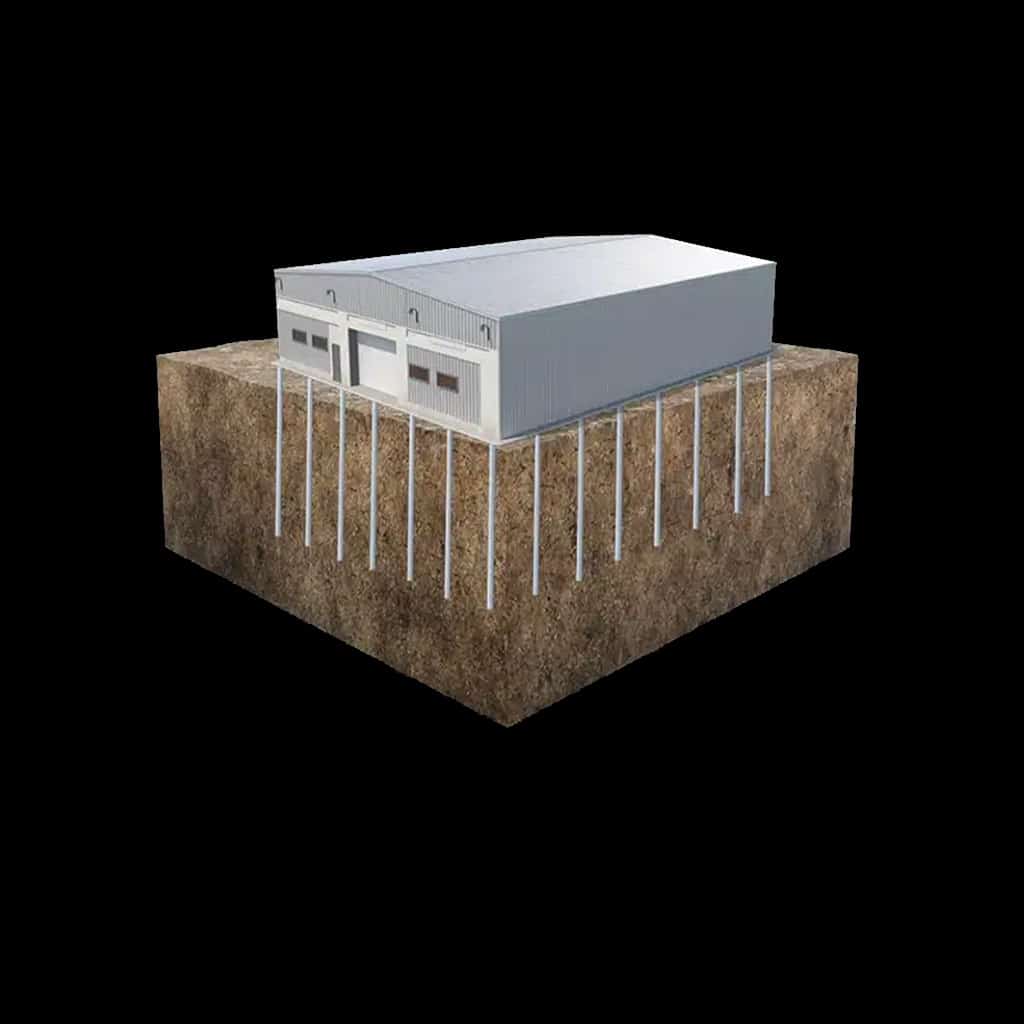

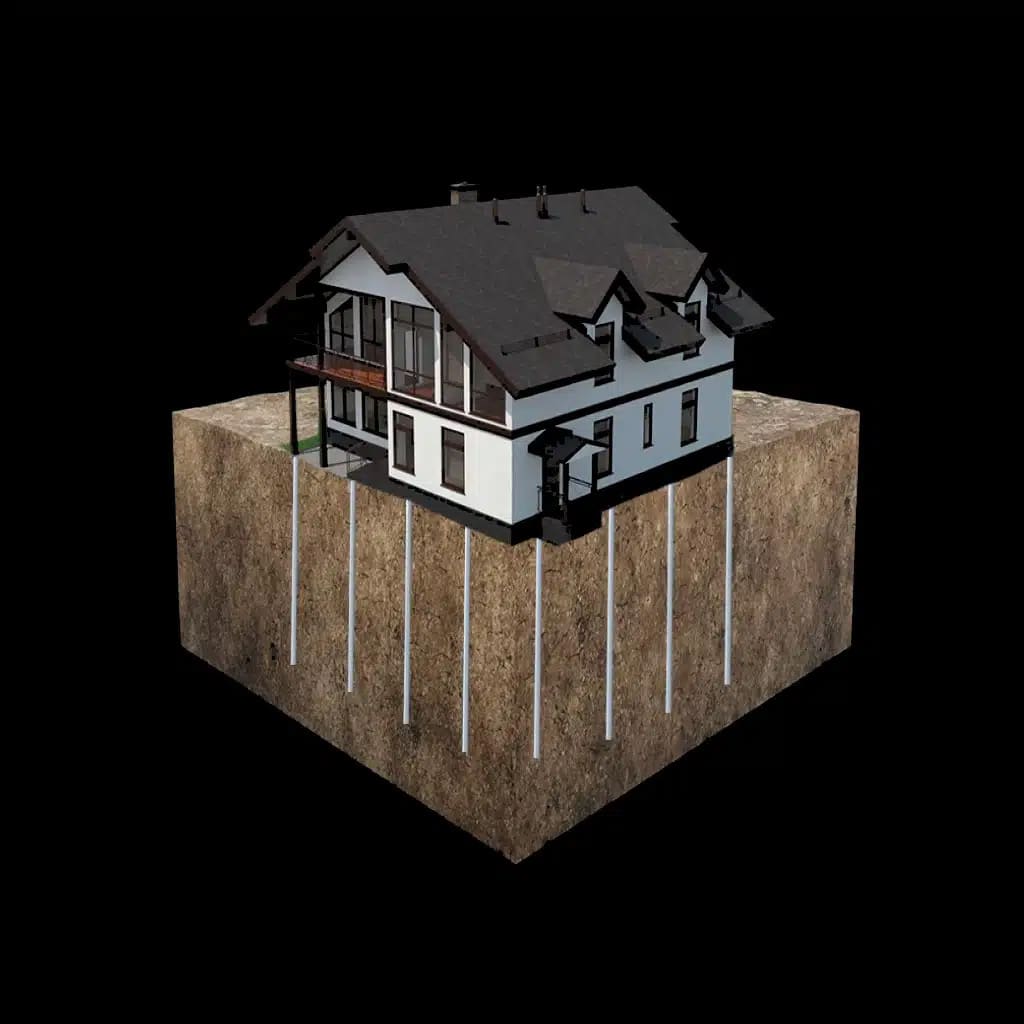

To picture a structure that has been underpinned, visualize your home’s foundation resting upon underground steel piers. These steel piers safely and permanently transfer the weight of a structure onto solid bedrock or load-bearing strata. Underpinning piers are used to stabilize a structure and have the ability to return it to its original elevation.
