The Project

A single-family home in Oldsmar, FL began showing classic signs of settlement: widening drywall cracks, out-of-square interior doors, and uneven baseboards along the northwest rooms. The homeowners acted quickly and called Helicon for a no-pressure evaluation. After a thorough site walk, level survey, and exterior perimeter inspection, our team recommended push pier underpinning to stabilize the structure and, where conditions permitted, perform a careful elevation recovery. To ensure third-party quality control from start to finish, AWARD Engineering was engaged to review the plan, monitor installation, and document performance at completion.

What made this project notable is the combination of precision and restraint. In Florida, particularly around Tampa Bay, soils can vary significantly within a single lot. Our plan had to bypass problematic near-surface soils, verify bearing capacity at depth, and lift the home only as much as the structure could safely accommodate—no shortcuts, no overreaching

The Challenge

Foundation settlement threatens more than finishes; it alters load paths and stresses framing connections, which can accelerate wear and introduce water management issues. In this home’s case, the northwest exterior showed the greatest movement, indicating that differential settlement—not uniform subsidence—was the driver behind the visible symptoms.

Two realities shaped the approach:

1. Lift is not guaranteed.The priority is always stabilization. Lift is attempted when soils, structure, and safety factors align.
2. Florida’s variable profiles.Pinellas County’s near-surface sands and organics can be unpredictable. Any remediation must transfer loads to competent, deeper material and lock in performance regardless of seasonal moisture swings.

These constraints led us to a targeted underpinning strategy designed to achieve reliable, verifiable results without unnecessary disruption to landscaping or daily life.

The Solution

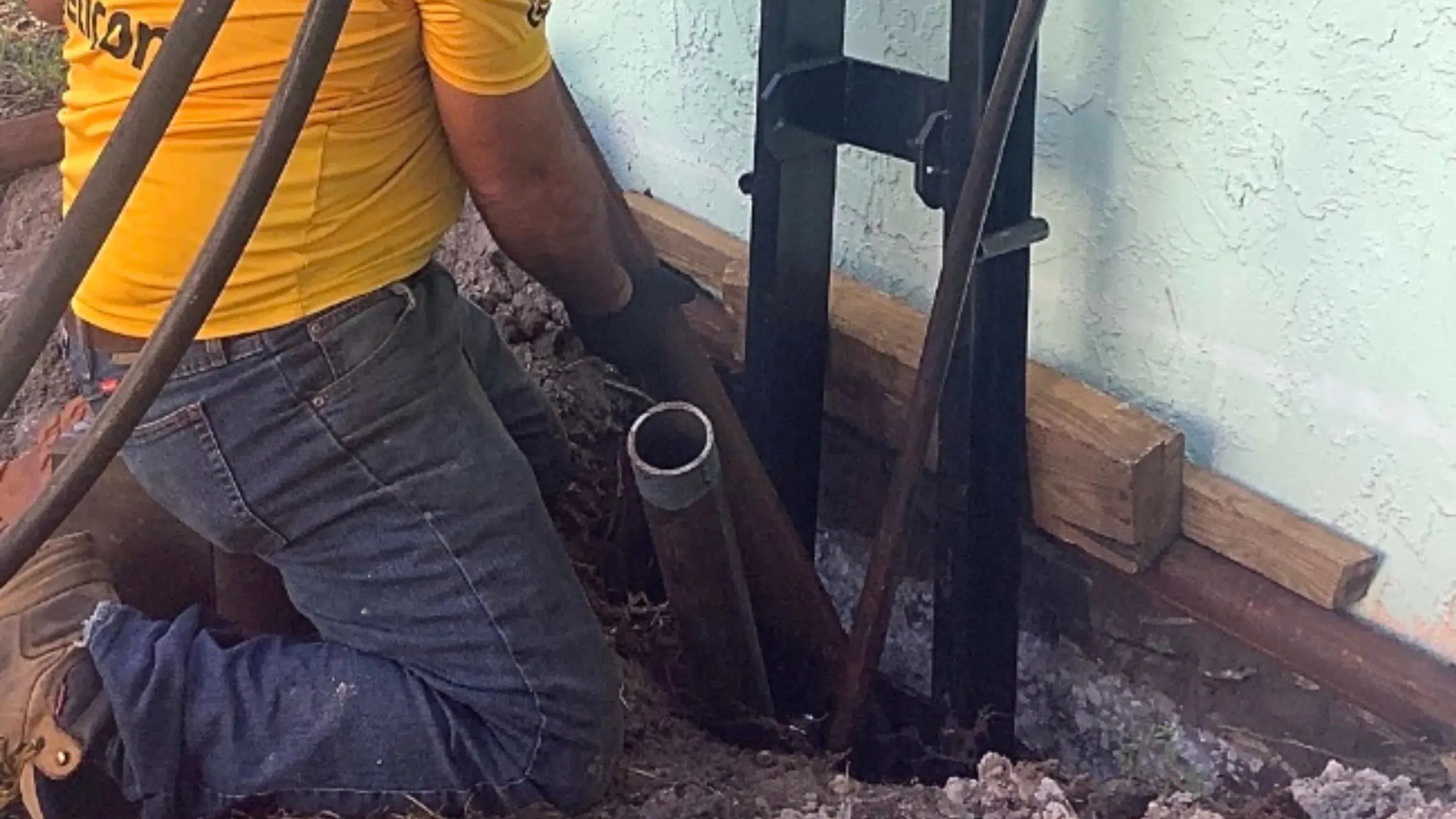

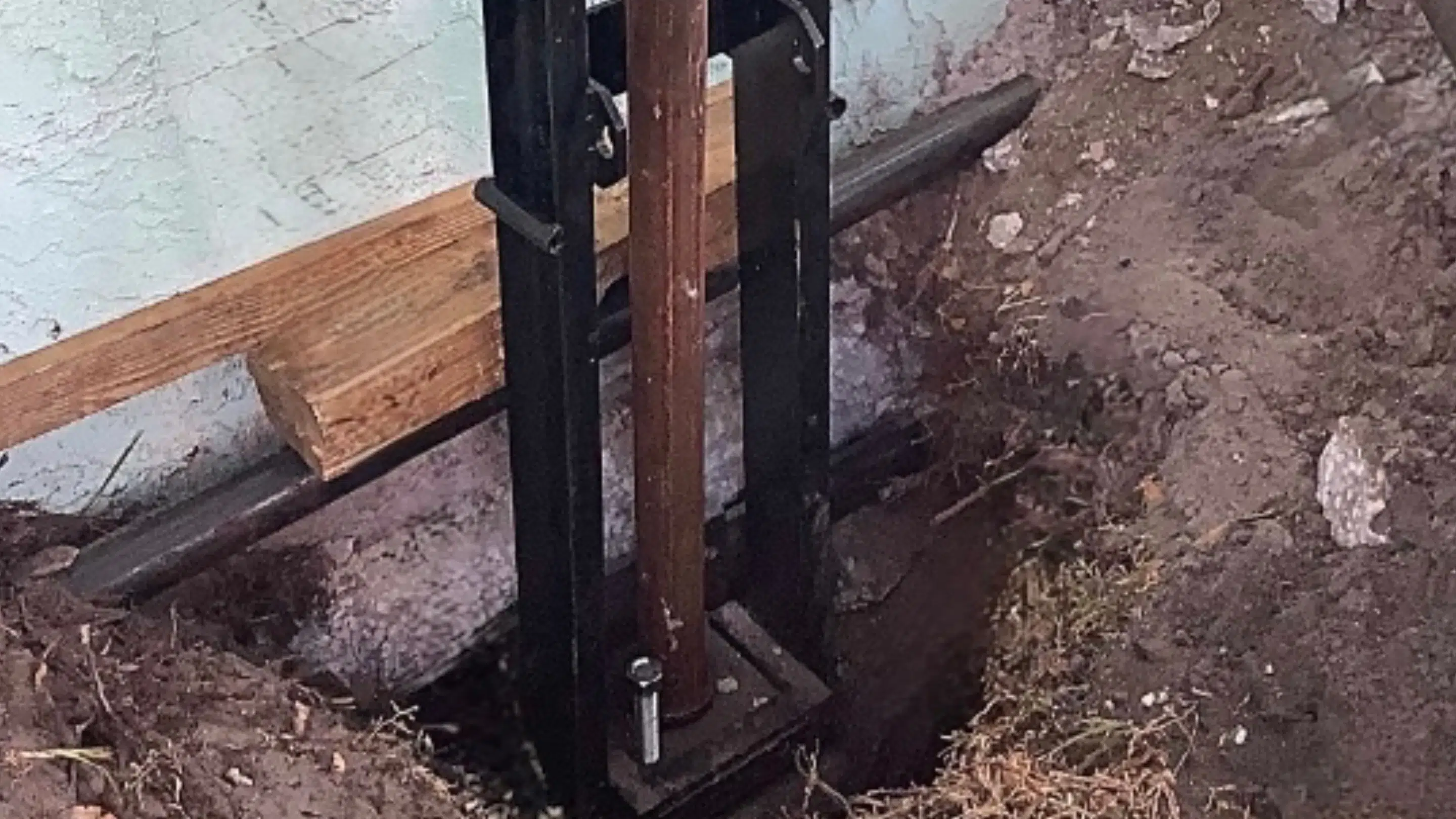

Through foundation repair, Helicon installed seven steel push piers strategically along the northwest exterior. Each pier was hydraulically driven through the upper problem soils to refusal on deeper, load-bearing strata, achieving the capacity required to permanently support the structure. Pier depths in this area of Oldsmar typically range between 16 and 32 feet, and this project fell within that window.

Once capacity was verified at each location, our crew executed a synchronized, controlled lift. Using precision gauges, we applied uniform pressure to ensure even movement, closely watching the home’s response in real time. Throughout the process, AWARD Engineering observed, checked readings, and confirmed the structure’s behavior matched expectations. The lift reduced differential settlement, improved door operation, and helped close targeted cracks. Just as importantly, the home was fully stabilized at the new bearing depth, helping to prevent future settlement at the treated perimeter.

Key elements of the installation:

– Minimal excavation at each bracket location to preserve landscaping and hardscape

– Hydraulic drive to refusal, confirming end-bearing capacity at depth

– Galvanized steel components for long-term durability in Florida conditions

– Bracket-to-footing connections engineered for reliable load transfer

– Engineer-monitored lift with stop criteria to protect the structure

Results at a Glance

• Stabilized foundation: Load transferred to competent deep soils via seven push piers


• Targeted elevation recovery: Controlled lift reduced differential settlement and improved interior function


• Verified performance: Continuous oversight by AWARD Engineering from pre-lift checks through final sign-off


• Low disruption: Small work zones, clean staging, and same-day stabilization at each pier location

Timeline & Homeowner Experience

From the signed proposal to final engineering confirmation, the project followed a crisp, homeowner-friendly rhythm:

1. Evaluation & plan:Initial assessment, measurements, and scope confirmation
   2. Scheduling & staging: Utility locates, material delivery, crew briefing
   3. Installation: Drive piers to refusal, confirm capacity, set brackets
   4. Lift & verification: Synchronized lift with engineering oversight
   5. Backfill & clean-up: Restore landscaping and remove staging
   6. Final documentation: Engineer memo and Helicon completion packet

Throughout, the homeowners received clear daily updates: what we did, what we found, and what to expect next. This transparency not only reduces stress but also helps owners understand how underpinning protects their investment long-term.

Why Push Piers Fit Tampa Bay Soils

Pinellas County and the broader Greater Tampa Bay region (Oldsmar, Safety Harbor, Westchase, Palm Harbor, Dunedin, Clearwater, Tampa, St. Petersburg) feature near-surface sands, organics, and fill materials that can shift with moisture and time. Push pier underpinning bypasses these inconsistent layers, anchoring the home to deeper, stronger soils. The result is a stabilized foundation less sensitive to seasonal changes and irrigation patterns. For many Florida homeowners, push piers are a minimally invasive alternative to extensive excavation or full rebuilds—delivering high structural value with limited disruption.

Technical Highlights

• Pier count: 7 total along the northwest exterior


• Depths: Approximately 16–32 ft to refusal


• Structure: Single-family residential with differential settlement indicators


• Method: Hydraulic drive, bracketed footing connection, synchronized lift


• Quality control: Third-party engineering oversight and documentation


• Outcome: Stabilization achieved; targeted elevation recovery completed

FAQs

What is a push pier?

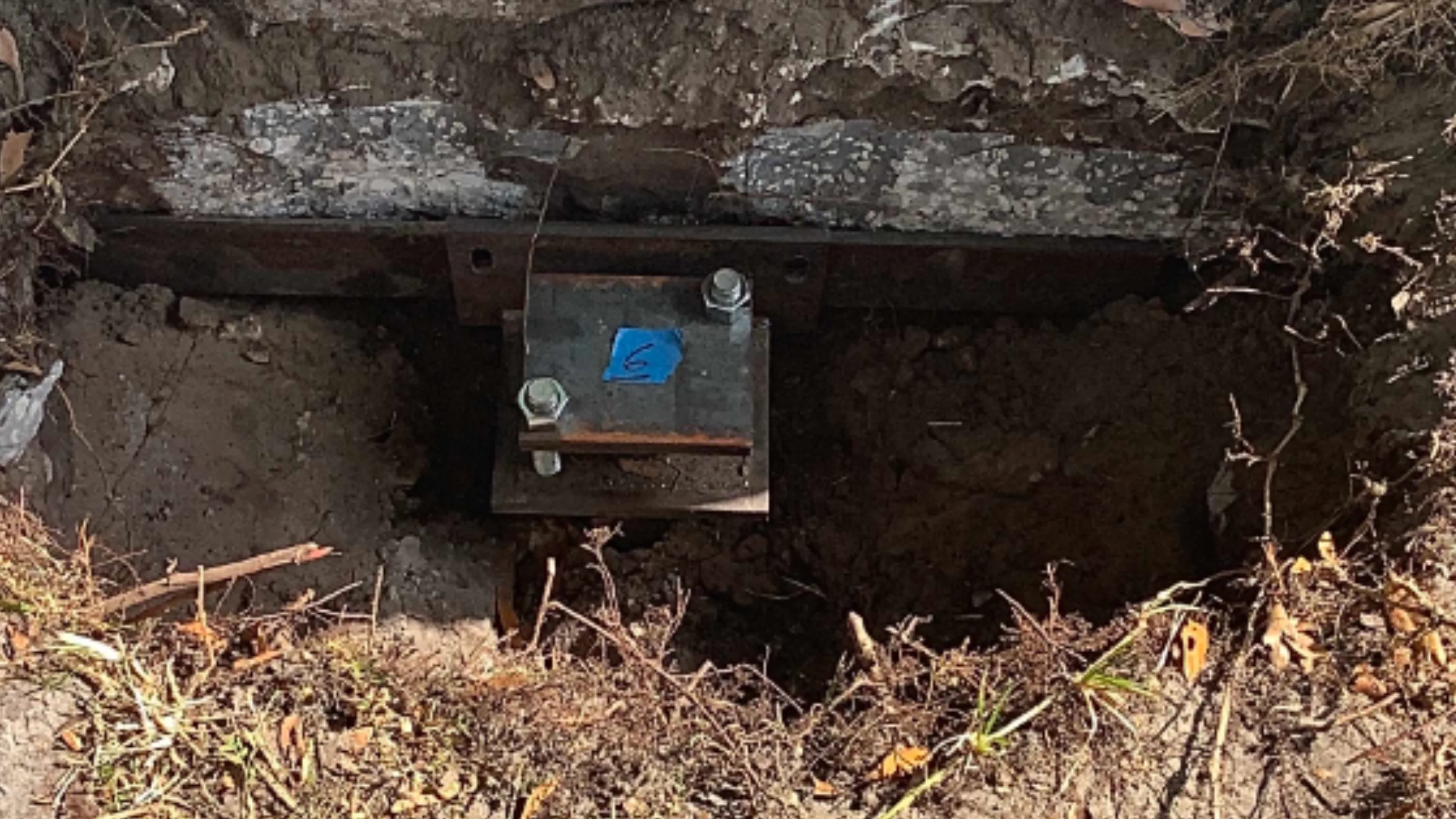

A high-strength steel pile driven beside the footing until it bears on a competent layer. A bracket transfers the home’s weight from the footing to the pier, creating a stable, deep foundation system.

Will push piers fix every crack?
Stabilization stops further settlement. Many cracks close or reduce during lift, but cosmetic repairs may still be needed. The big win is stopping movement at the source.

How long does installation take?
Most residential projects complete in a few days, depending on access, pier count, and weather. Stabilization at each pier is confirmed during installation.

Can every home be lifted back to original elevation?
Not always. Lift potential depends on soil behavior and structural response. Stabilization is the priority; lift is attempted only when it’s safe and beneficial.

Is engineering oversight necessary?
Independent monitoring adds documentation and peace of mind. On this project, AWARD Engineering provided oversight and sign-off.
