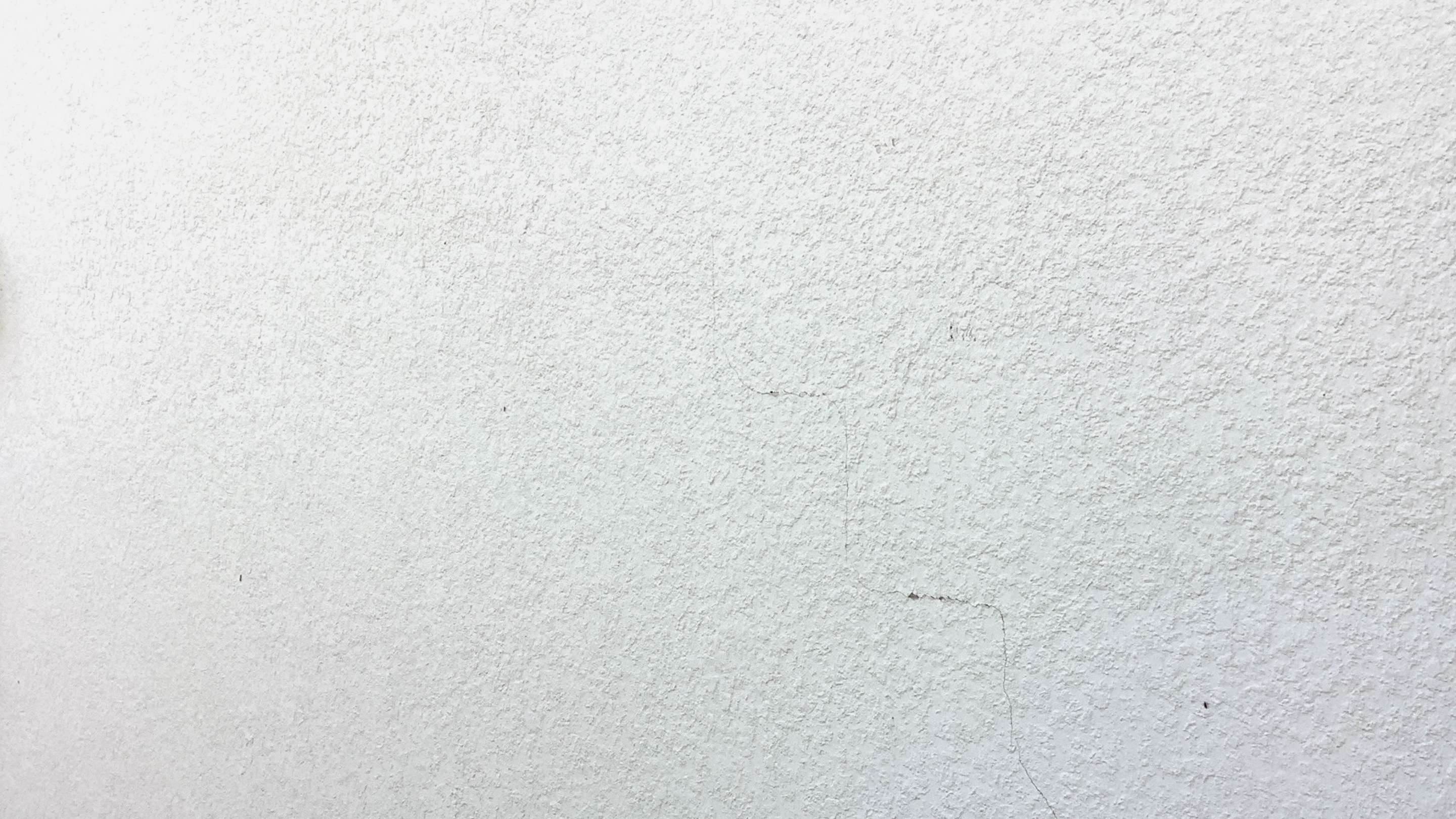

Primary Concern: Visible stair‑step cracking at exterior block joints on both sides; gaps forming at slab‑to‑grade interfaces; minor binding at doors and trim consistent with edge settlement.

Owner Goals:

1. Stop soil loss and re‑support the slab edges.
2. Prioritize stability over aggressive lift to protect finishes.
3. Complete the repair cleanly and quickly while the home remains occupied.
4. Guide post‑repair cosmetic work and drainage best practices.

Site Clues: The history mattered. The home had operated for years without gutters. Even after gutters were added recently, prior cycles of sheet flow had already washed fines away from critical bearing zones—especially at corners and re‑entrant wall lines where loads concentrate. These patterns pointed to a near‑surface problem in the top layer, not a deep failure.

Perimeter settlement is a soil mechanics problem as much as it is a structural one. Three realities shaped our design:

1. Lift is never guaranteed. The owner sought a permanent solution that stops movement; any concrete lifting would be addressed cautiously and only where the slab responded uniformly.
2. Variable near‑surface fills. Florida homes often sit on mixed backfill with pockets of organics or under‑compacted sand. Those zones settle unevenly with rainfall and irrigation, driving cracks and slab edge gaps.

Occupied‑site constraints. The home stayed in service throughout. The fix had to be non‑demolition, tidy, and fast with penny‑sized ports and compact equipment.

Diagnostic Approach (Measure Twice, Inject Once)

Before we ever brought material to the site, we verified the scope and limits of the problem:

• Exterior crack mapping to correlate patterns with load paths and slab edges.
• Percussion sounding and probe checks at the perimeter to locate hollow zones/voids.
• Laser level readings at threshold transitions to benchmark relative elevations.
• Drainage review (downspouts, splash blocks, grading, irrigation) to reduce future recurrences.

These steps confirmed that the near‑surface influence zone was the driver. That’s exactly where two‑part polyurethane excels: it migrates to low‑resistance pathways, then expands to lock grains and restore contact.

Foundation Repair

Helicon deployed a mapped injection plan that combined soil injections in the shallow influence layer with interface injections at slab contact points. We selected a structural polyurethane engineered for void fill, soil coupling, and rapid cure.

Why Polyurethane vs. Mudjacking or Replacement

• Lightweight: Adds negligible dead load compared with cementitious slurries, reducing re‑settlement risk.
• Targeted: Flows to voids and tightens the matrix where support is actually missing.
• Fast: Cures in minutes, not days—ideal for occupied homes.
• Clean: Small‑diameter ports minimize patching and preserve curb appeal.

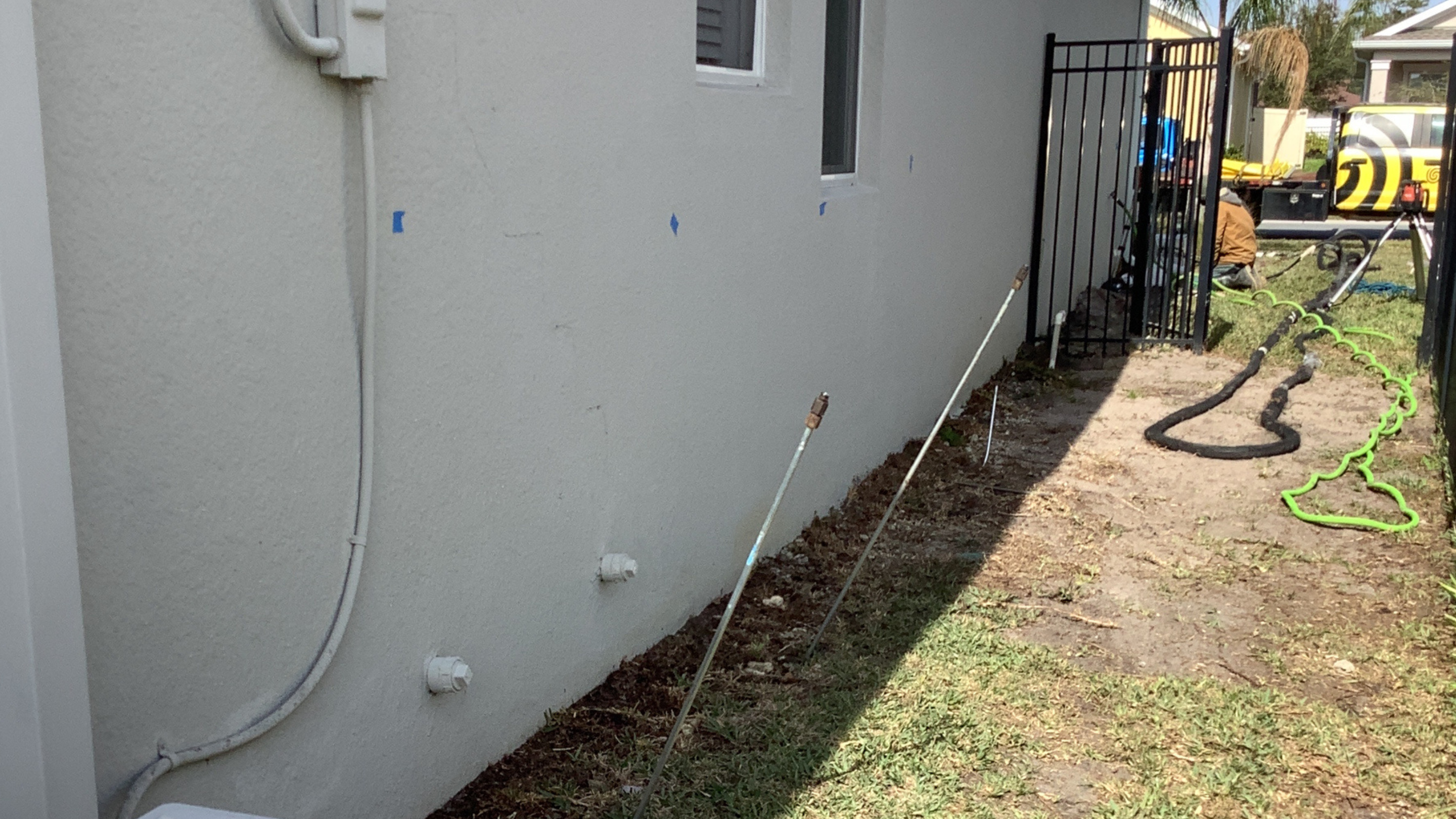

Injection Pattern & Production

• 32 injection points around the foundation perimeter (linear wall runs + corners).
• ~880 pounds of two‑part polyurethane installed in short, metered lifts.
• Corners reinforced with higher‑intensity treatment to counter stress concentrations.

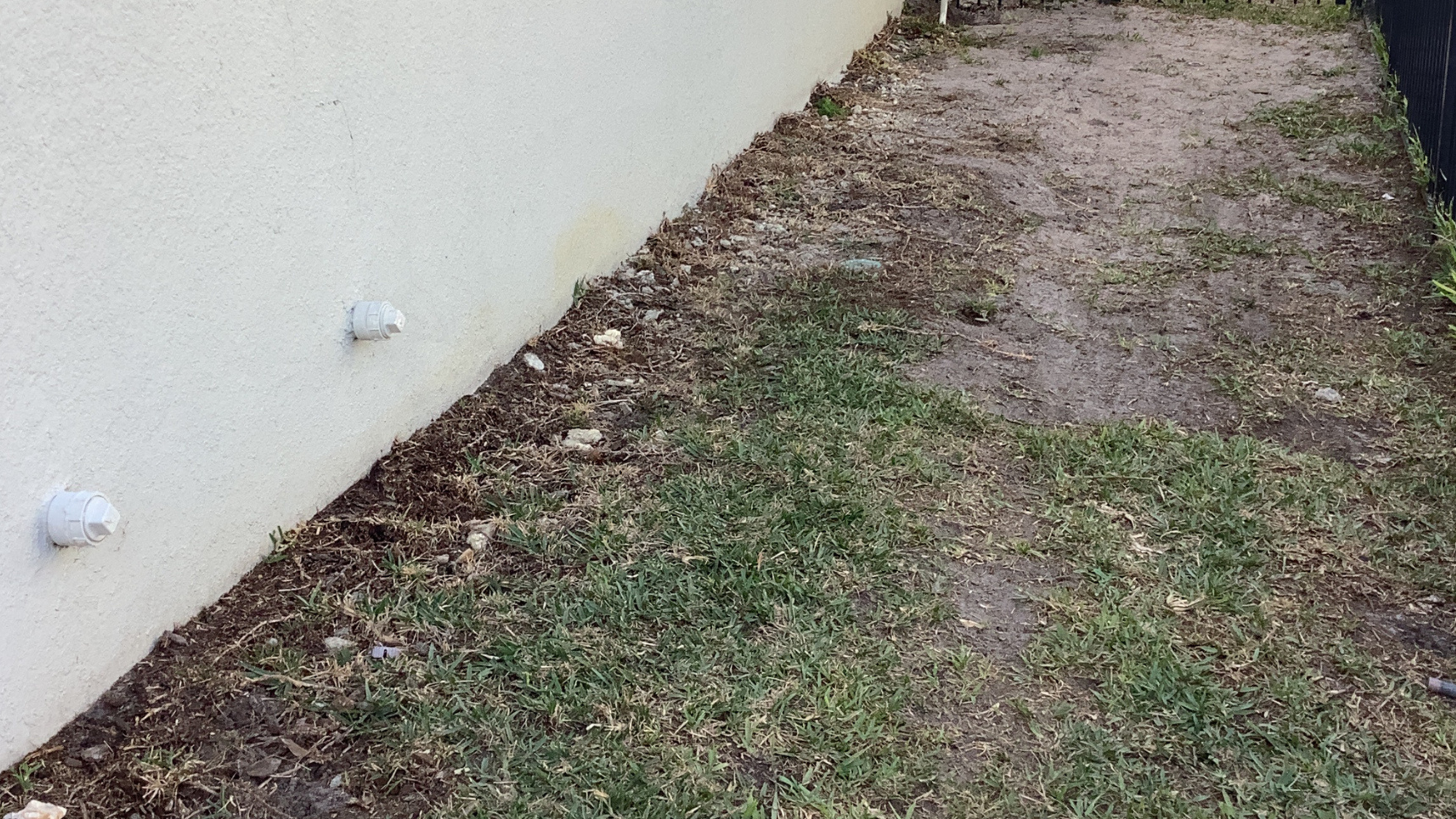

• Interface ports at slab edges to restore contact once the shallow matrix was tightened.

Results & Benefits

• Foundation perimeter stabilized. The soil‑foam matrix closed voids and re‑coupled grains, providing a uniform bearing surface beneath the slab edges.
• Crack drivers addressed. With the process complete, ongoing settlement forces at treated areas were dramatically reduced, setting the stage for durable cosmetic repairs.
• Safer transitions. Where feasible, minor concrete lifting brought edges back toward plane and reduced trip differentials at walks and thresholds.
• Clean, fast delivery. No demolition, no heavy equipment, and limited noise. Typical areas returned to light service the same day.
• Florida‑ready durability. Once cured, polyurethane is inert and moisture‑resistant, ideal for Osceola County’s seasonal downpours.

Homeowner FAQs

Can you guarantee my house will be perfectly level?
No. Our guarantee is a best‑practice stabilization with measured lift only where safe. The priority is to stop the mechanism causing movement; many homes see meaningful functional improvement after that.

How long will the repair last?
Two‑part polyurethane is inert after cure. Longevity depends on drainage and loading. With good downspout extensions, positive grading, and maintained caulking, results are long‑lasting.

Is this safe for utilities and landscaping?
Yes. We use small ports, metered volumes, and clear utility locates. The approach is surgical compared with excavation or replacement.

Will the cracks close by themselves?
Structural drivers are addressed by soil stabilization. Cosmetic cracks often tighten after support is restored, but finishing touches—repointing, patching, repainting—should be completed by others after stabilization.

Maintenance & Prevention

• Gutters & downspouts: You installed gutters—great. Keep them clean and extend downspouts at least 5–6 feet from the foundation.
• Grading: Maintain a positive slope away from walls to route water off the foundation line.
• Irrigation discipline: Avoid chronic saturation at the perimeter; adjust sprinklers and repair leaks quickly.
• Joint management: Maintain sealants at slab/foundation interfaces and control joints to limit water ingress and fines migration.
• Seasonal check‑ins: Photograph repaired cracks quarterly the first year to confirm stable conditions.
