Market: Residential
Solution: Foundation Repair
Services: Push Piers (Underpinning) and Two-Part Polyurethane Injections (Soil and Slab)
Property Overview
The homeowner had already seen signs of movement over time. Some of the perimeter stair-step cracks had been patched previously, which suggested the problem was not new. Instead, the visible cracking had likely developed gradually as support was lost beneath the home. By the time Helicon was called in, the situation had become more severe: the rear right corner had opened up enough to create a large visible crack, confirming that movement was not only ongoing but significant.
At this stage, patching or cosmetic repair alone would have been ineffective. The homeowner needed a true foundation repair solution—one that addressed the underlying structural cause of the settlement, not just the symptoms on the surface.
Why These Cracks Matter
Hairline or stair-step cracking can sometimes look minor to homeowners, but certain crack patterns are classic signs of foundation movement. In block homes across Florida, stair-step cracks often indicate differential settlement, especially when they are concentrated in corners or along specific wall lines.
In this Port Orange home, the warning signs were clear:

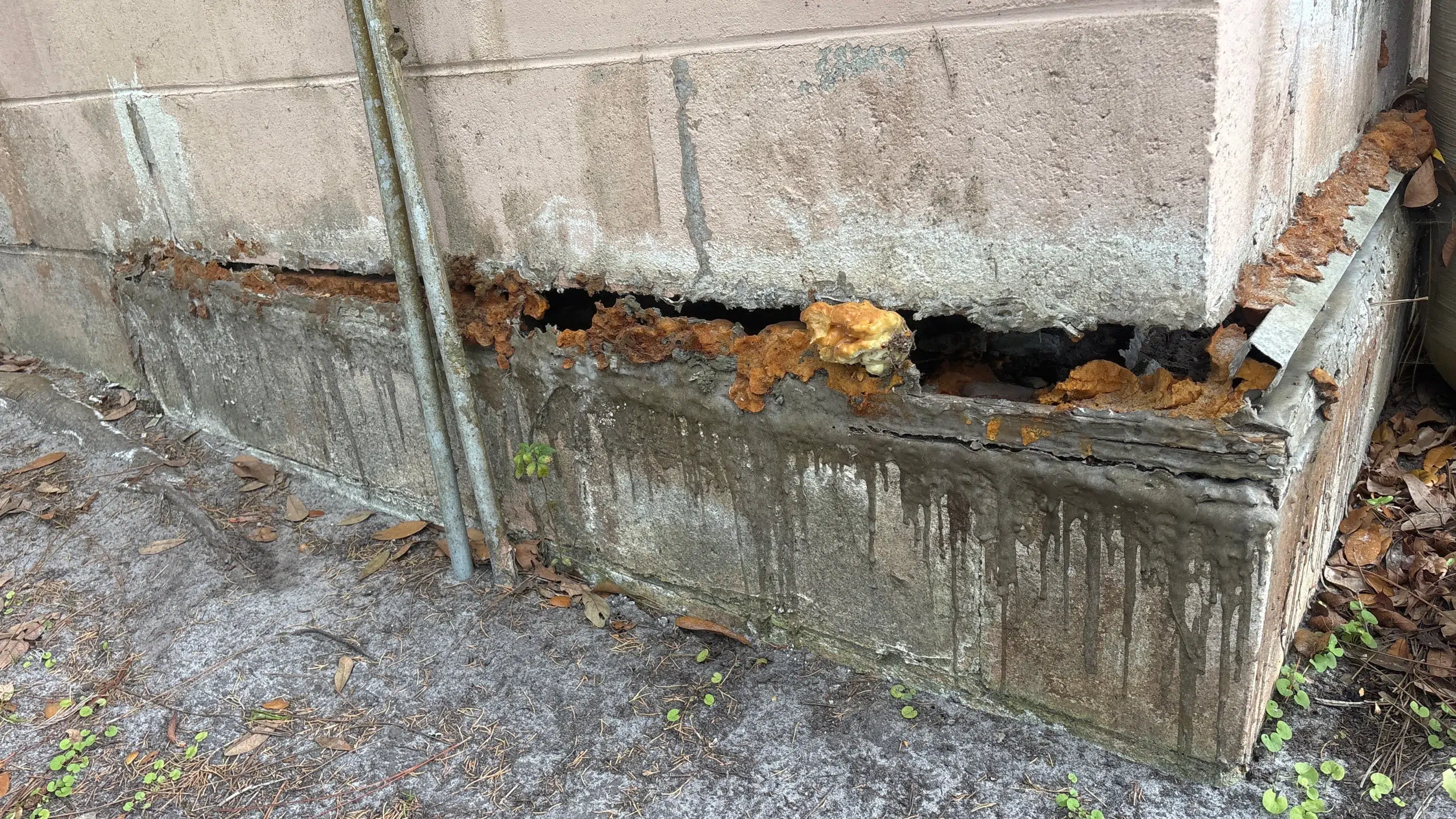

– A large open crack at one corner
– Repeated cracking despite earlier patching
– Structural movement severe enough to affect insurance eligibility
Those clues pointed to more than superficial distress. They suggested that the home was no longer being supported evenly. Once a corner begins to settle more than the rest of the structure, the walls above it begin to show the stress. Cracks widen, door and window openings may distort, and patched areas often reopen because the movement never stopped in the first place.
That is why true foundation repair has to begin with restoring support beneath the structure.
This project came with both structural and practical challenges.
The homeowner’s rear right corner had settled enough that simply arresting the movement was not the only objective. To achieve the best structural result, the team needed to bring the house back to level as part of the repair. That type of work requires more than equipment. It requires patience, coordination, and close control throughout the lift process.
As noted in the field summary, bringing the house back to level again was a difficult task and demanded precise teamwork from the crew. That is often the case in residential underpinning projects, where even small structural responses must be monitored carefully to avoid overcorrection or unintended stress elsewhere in the home.
The rear corner clearly needed deep foundation support, which is why push piers were the right fit. But the project also called for polyurethane injections inside and outside the home. That meant the repair team was dealing with two different layers of support problems:
The repair had to address both.
This was not an open-ended project. The homeowner had a real insurance deadline. The work needed to be completed quickly and correctly so the home could remain insurable. In foundation repair, schedule pressure can never outweigh quality, but it often makes clear communication and disciplined execution even more important.
Why Push Piers Were the Right Foundation Repair Solution
For homes experiencing significant settlement in a specific corner or along a wall line, push piers are one of the most effective foundation repair tools available. Push piers are steel underpinning elements installed vertically along the exterior footing and driven downward until they reach competent load-bearing soils.
Once properly installed, they allow the weight of the home to be transferred away from unstable surface soils and onto deeper, more reliable strata.
Benefits of Push Piers in This Case
For this Port Orange project, push piers were the right solution because they could:
– Stabilize the settling rear right corner
– Transfer structural load to deeper bearing soils
– Allow for measured lift where the house responded safely
– Provide a long-term foundation repair solution rather than a surface-level patch

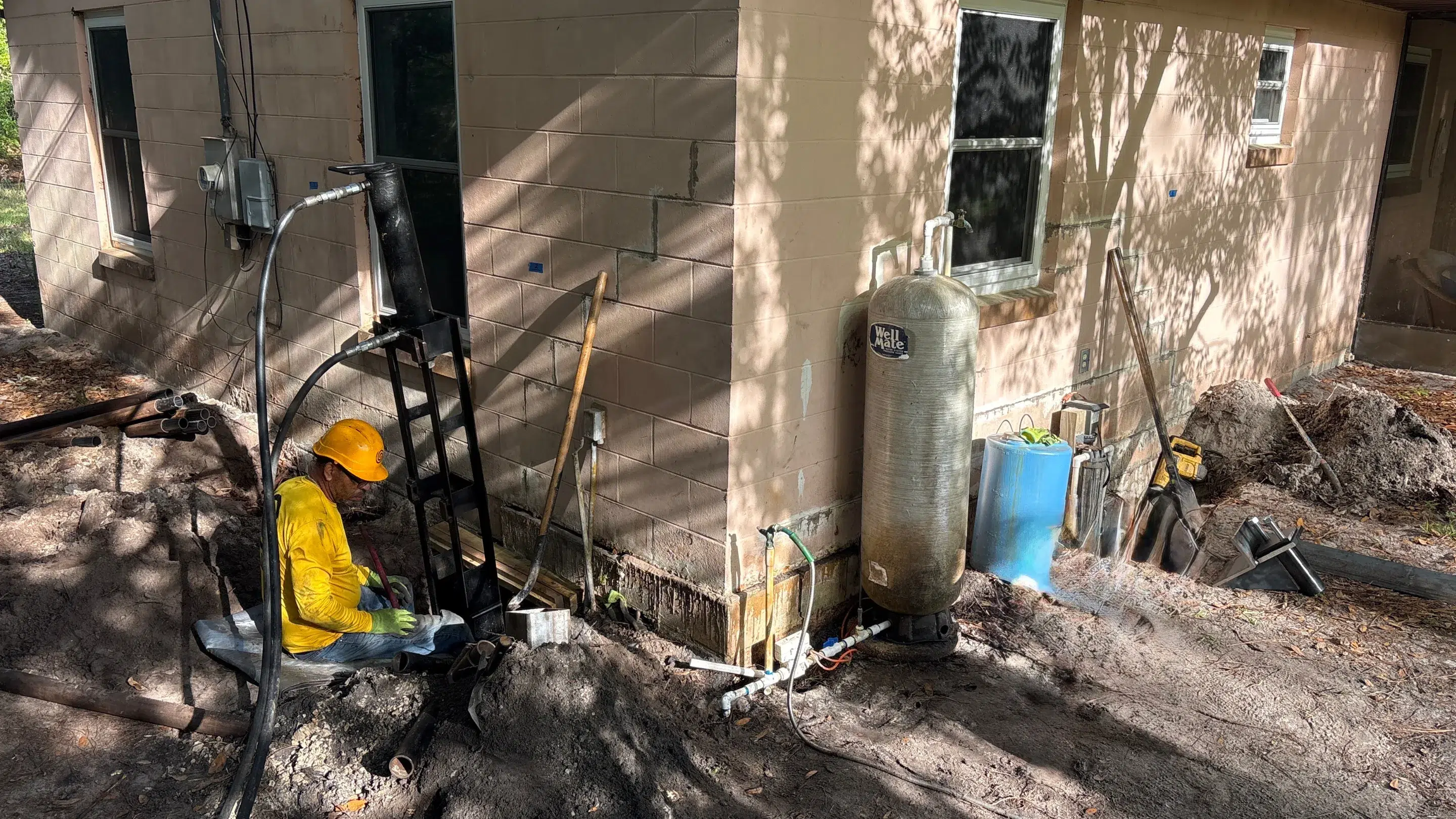

Helicon installed 4 push piers on the exterior of the home as the first phase of the repair. As the piers were brought into load, the team was able to lift the rear right corner of the home, improving alignment and reducing the severity of movement at the most distressed area.
That lift was not just about appearance. It was part of re-establishing a stronger, more dependable structural position for the home.
Why Polyurethane Injections Were Added After Underpinning
Underpinning addressed the deep structural problem, but it did not fully solve the shallow support conditions beneath the interior slab and surrounding exterior soils. That is why Helicon followed the push pier installation with two-part structural polyurethane injections.
This second phase served an important role in the overall foundation repair plan.
Interior Slab Support
The crew injected 20 pounds of structural polyurethane beneath the interior slab. These injections helped restore support under slab areas affected by settlement and reduced the risk of continued bridging over weakened soil.
Exterior Soil Stabilization

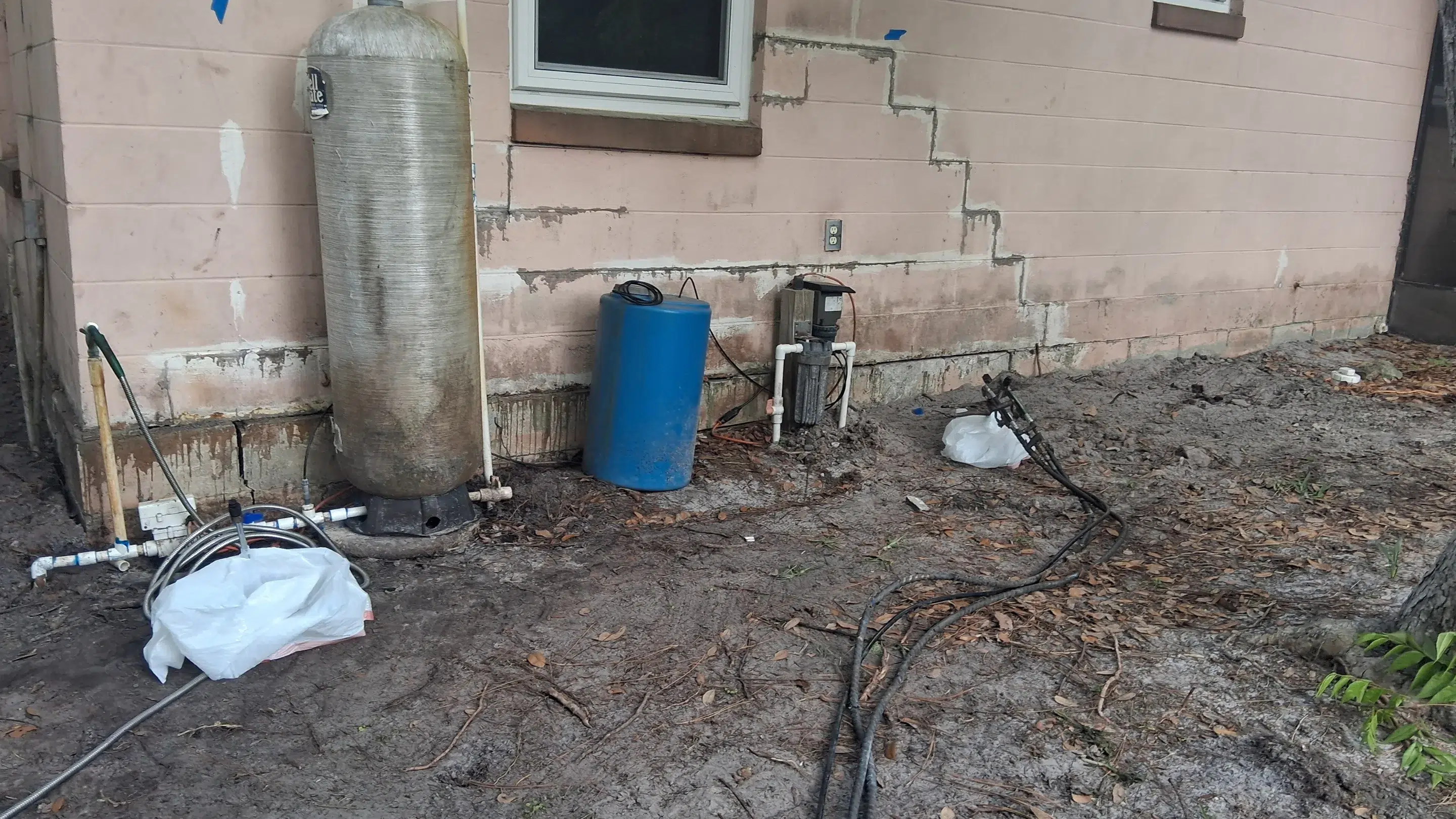

In addition, the team completed 6 exterior soil injection points totaling 180 pounds of structural polyurethane. These injections densified shallow weak zones around the exterior treatment area and reinforced the support condition near the affected corner.
Why This Matters
A successful foundation repair project often requires more than one technology. In this case:
– Push piers stabilized the deep load path
– Polyurethane injections improved shallow support conditions
That combination created a more complete stabilization strategy than either system alone could have achieved.
Helicon’s repair plan followed a logical sequence designed to restore support from the ground up.
Phase 1: Exterior Push Pier Installation
The first step was to install the 4 push piers outside the home. These piers were advanced into competent load-bearing soils, then used to support and lift the rear right corner.
Phase 2: Interior Slab Injections
After the deep support system was established, the crew moved inside to place 20 pounds of structural polyurethane beneath the slab. This helped restore support where shallow subsurface loss may have affected the floor system.
Phase 3: Exterior Soil Injections
Finally, the team completed 6 soil injection points totaling 180 pounds outside the home to strengthen and densify the shallow support zone around the treated perimeter.
This sequence matters because it addresses the deepest structural issue first, then improves the upper support conditions that can still affect slab performance and overall stability.
Helicon is Florida’s trusted leader in foundation repair, push piers, structural polyurethane injections, concrete lifting, soil stabilization, and sinkhole remediation. We serve homeowners across Port Orange, Volusia County, and throughout Florida, delivering engineered repair systems that stabilize structures from the ground up.
If you are seeing stair-step cracks, open corner cracks, sloping floors, or sticking doors in Port Orange or Volusia County, Helicon can help. Our team provides professional foundation repair, including underpinning, slab stabilization, and structural polyurethane injection solutions tailored to Florida homes.
