Primary Symptoms:

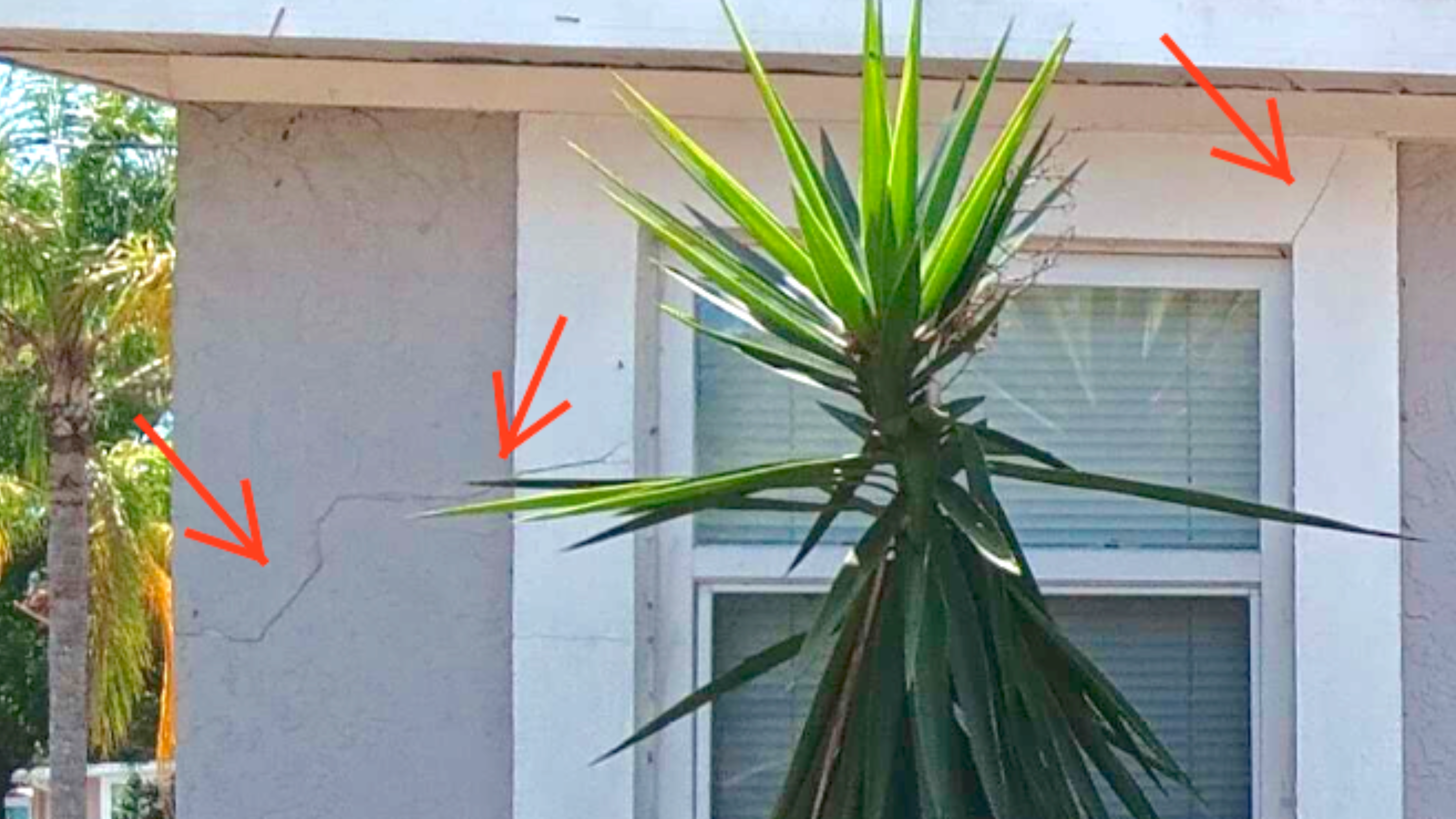

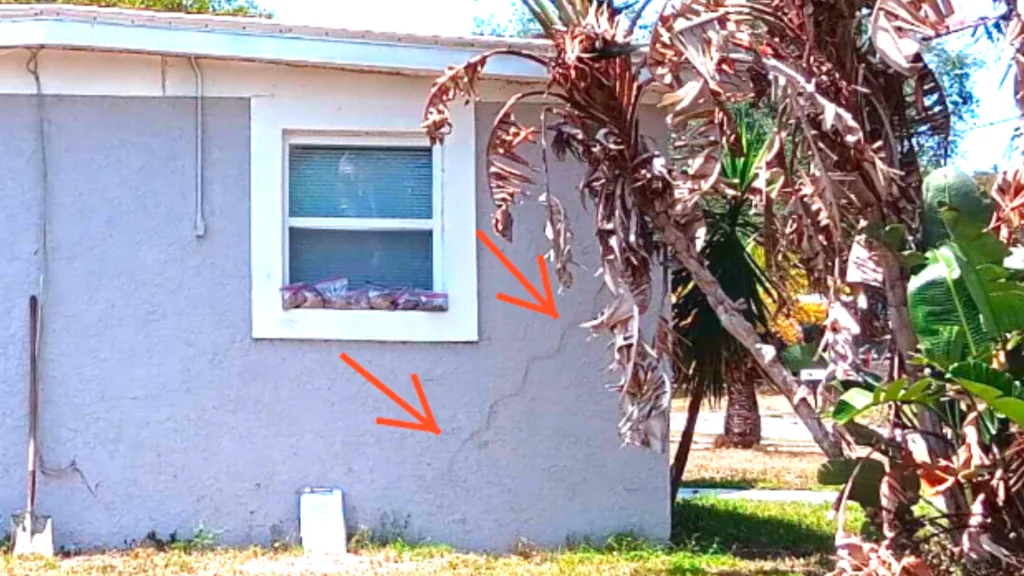

• Stair‑step cracking on the front‑left corner masonry
• Interior cracking and localized settlement symptoms (doors binding, trim misalignment)
• Owner requests for lifetime stabilization and guidance on sequencing a future rear slab

Objectives:

1. Permanently stabilize the foundation at the distressed corner.
2. Minimize disturbance to tenants while maintaining safety and quality.
3. Provide a clear post‑repair plan for cosmetic fixes and the large backyard concrete pour.

Tenant occupancy created access constraints, particularly for interior‑side work. That meant:

• Scheduling and communication had to be tight, with defined notice windows and on‑site etiquette.
• The repair strategy needed to focus on exterior access wherever possible.
• Interior verification (e.g., door swings, crack gauges) required coordinated entry to confirm improvements after load transfer.

From a technical standpoint, localized edge settlement at a corner often stems from variable shallow soils, seasonal moisture swings, and sometimes undermined bearing near downspouts or hardscape. The remedy must isolate the footing from these influences by carrying load to depth and providing a measurable, durable path to capacity.

Geotechnical Context (Greater Tampa Bay)

Pinellas County’s near‑surface soils commonly include loose sands with lenses of fines, occasional construction fill, and moisture‑sensitive zones near landscaping and irrigation. These conditions can allow differential settlement, especially at corners and re‑entrant wall lines where loads concentrate. An underpinning system with steel push piers is well‑suited here because it relies on verified drive resistance to reach bearing strata that are less affected by weather or irrigation cycles.

Helicon designed and installed five (5) steel push piers along the front‑left foundation line. Push piers are hydraulically driven steel elements that advance in 5‑foot segments until refusal indicates competent bearing. Once capacity is verified, brackets transfer the structure’s weight to the deeper stratum.

Why Push Piers

• Permanent stabilization: Bypasses weak/variable shallow soils and seats the foundation on a reliable horizon.

• Measured lift potential: With the home’s response monitored in real time (crack behavior, door movement), crews can apply controlled jacking to restore limited elevation where prudent.

• Minimal disruption: Small exterior pits and compact hydraulics minimize impacts to tenants, landscaping, and walkways.

• Quantified QA/QC: Drive pressures and lock‑off loads provide a traceable record of achieved capacity.

Installation Steps

1. Layout & Mark‑Outs – Utilities were located; pier points were set to align with load paths at the distressed corner.

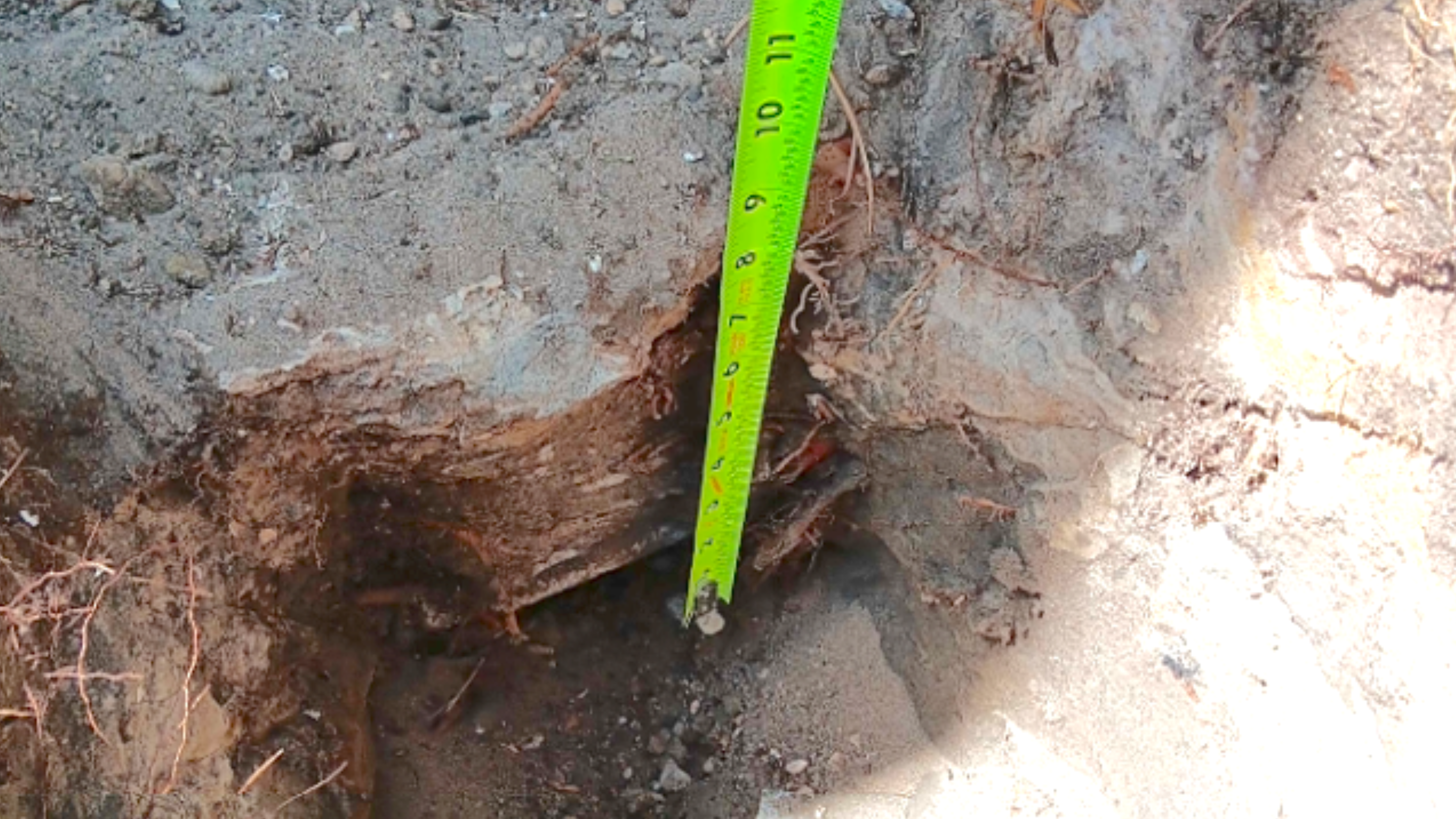

2. Access & Excavation – Small, tidy excavations exposed the footing at each pier point; spoils were contained.
3. Bracket Prep – Footing faces were cleaned and squared as needed; underpinning brackets were installed per engineered details.
4. Pier Driving – Steel segments were driven hydraulically to refusal at competent strata; drive resistance was logged at each location.
5. Load Transfer & Lift Attempt – Loads were transferred to the piers; if the structure and soils permitted, a carefully monitored lift was attempted to improve alignment without risking finishes.
6. Lock‑Off & Restoration – Brackets were locked in place; excavations were backfilled/compacted; surfaces restored. Final walkthroughs aligned findings with the owner’s expectations.

Results & Benefits of Foundation Repair

• Stabilization Achieved: With five push piers carrying the front‑left corner on competent bearing, the foundation is now decoupled from problematic shallow soils.

• Crack & Door Behavior Improved: Where prudent, controlled lift reduced stress at cracks and improved door/trim alignment.

• Tenant Disruption Kept Low: Exterior‑first execution, clean staging, and rapid restoration minimized impacts to daily life.

• Clear Path to Finish Work: The owner can proceed with interior cosmetic repairs, confident the underlying cause has been addressed.

• Ready for Backyard Slab Pour: Underpinning was sequenced before the planned concrete installation to ensure the new slab bears on stable subgrade conditions around the foundation.

Homeowner/Landlord FAQs

• Can you return the corner to perfectly level?
  • Our priority is permanent stabilization. Where the structure responds favorably, we pursue a measured lift to improve function and appearance. Total restoration to original elevations is not always advisable and depends on footing integrity and framing tolerance.
• How deep do the piers go?
  • Depth varies by location and is driven by achieving refusal/verified capacity at competent bearing—not a preset depth. What matters is the measured resistance and performance under load.
• Will new cracks stop completely?
  • Underpinning removes the settlement driver of cracking at treated areas. Normal thermal/humidity movement may still occur, but differential settlement should be significantly reduced where piers are installed.
• What about tenants during construction?
  • We maintain a low‑impact footprint, schedule with notice, and coordinate any interior checks tightly. Most single‑side underpinning projects complete in 1–2 working days with same‑day exterior restoration.

Maintenance & Monitoring

• Drainage Discipline: Keep gutters clean; extend downspouts; preserve positive grade away from the foundation.

• Landscape Planning: Avoid planting large, thirsty trees adjacent to foundations; manage irrigation to prevent chronic saturation or dry‑out cycles.

• Seasonal Checks: Photograph repaired cracks and door fits quarterly for the first year; call if changes appear.

• Future Modularity: If other elevations develop symptoms, additional piers can be added modularly without reworking the stabilized corner.
