Asset: Retention‑pond overflow drain

Problem: Ongoing washout/erosion around the drain, leaning/settling of the housing, and likely voiding beneath the structure

Objective: Stabilize the drain in its as‑is position by filling voids and tightening soils; no lifting expected or desired

Stakeholders: Property owner/manager; Helicon field team; paving/landscape vendors for post‑stabilization surface touch‑ups

Why this matters: Overflow drains concentrate hydraulic forces. Once soil loss begins, each storm episode can expand voids, creating sudden settlement at the structure and undermining the surrounding bank. Early soil stabilization stops the mechanism before it propagates into larger structural or environmental issues.

Three realities shaped the means and methods:

1. Hydraulic environment: The drain sits where runoff energy and head differentials are greatest. Stabilization must fill voids yet remain lightweight to avoid adding dead load or creating new settlement drivers.
2. Do‑no‑harm scope: The owner explicitly did not want lift. Any elevation change could misalign the overflow or induce stress at the pipe interface. The plan had to stabilize only with metered pressures.
3. Pre‑work prerequisites: Long‑term performance depends on addressing external contributors: verifying the drain line is watertight, backfilling deep washouts with clean fill, and compacting surface soils before injections. Coordinating those items ensures foam targets soil voids, not open conduits.

Scope Clarifications & Owner Responsibilities

To maximize stabilization value and protect nearby utilities and waterways, the owner completed—and agreed to maintain—the following before Helicon mobilized:

• Drain line verification: Camera inspection to confirm no active leaks in the pipe (so injections do not migrate into the conveyance).
• Backfill & compaction: Place clean fill in large washouts and compact accessible areas to reduce surface voids and provide confinement for resin expansion.
• Area preparation: Provide access around the drain structure and notify adjacent vendors (e.g., landscapers) of the stabilization schedule.

Helicon, in turn, planned to angle select injections to intercept the sub‑housing void, bring extra hose for reach across the bank, and stage small, distributed shots to avoid over‑pressurization.

Polyurethane Soil Stabilization

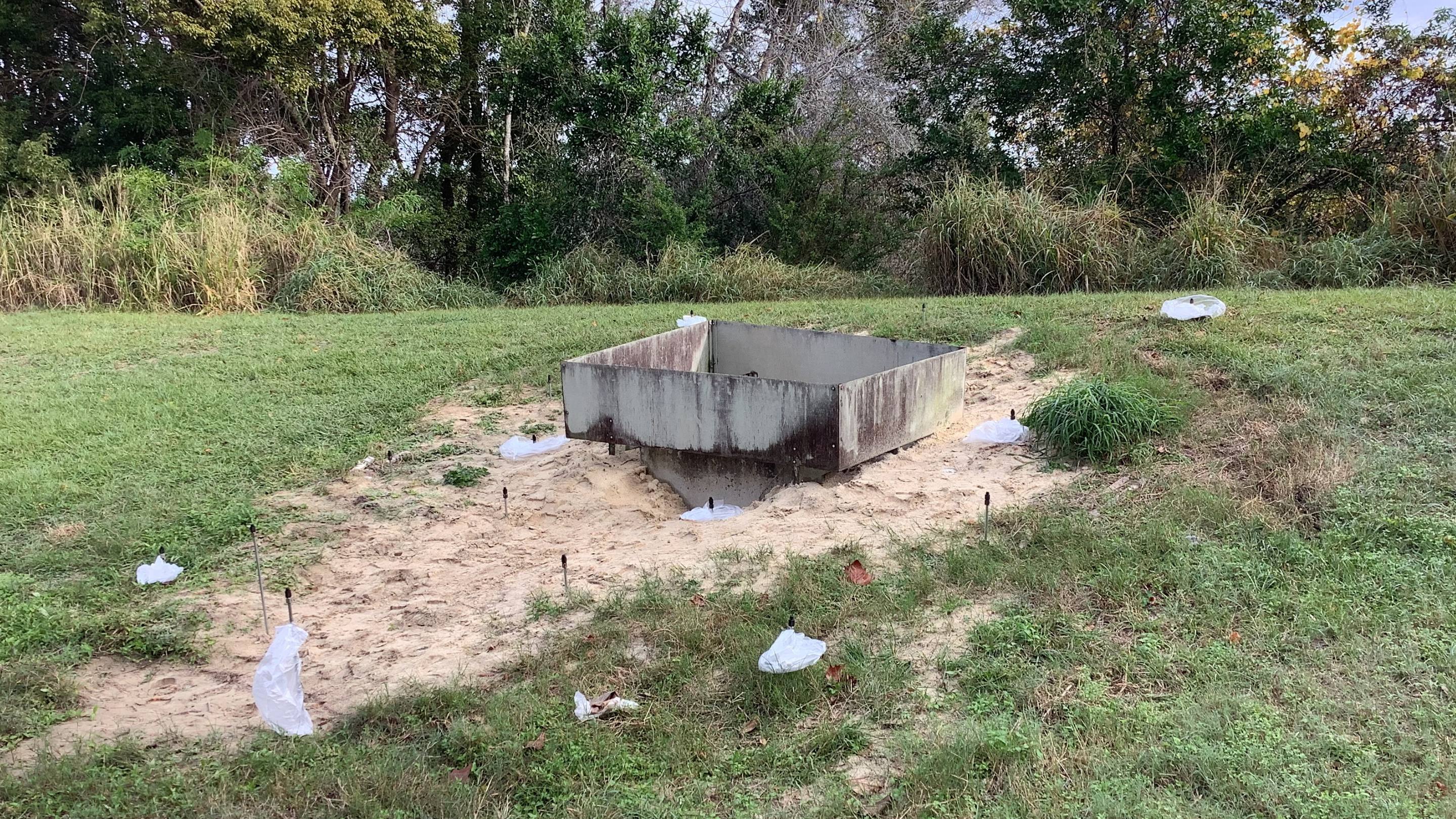

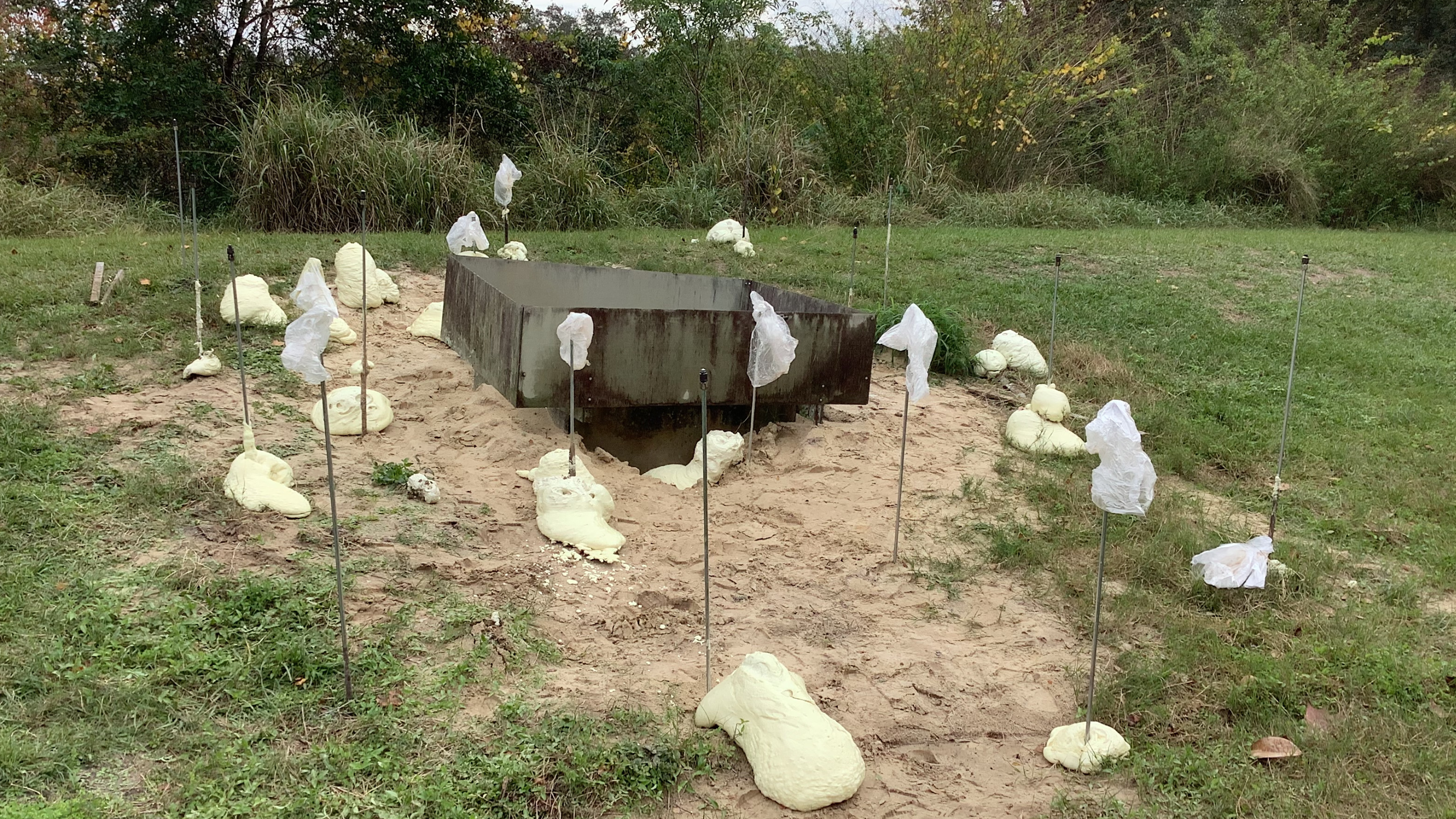

Helicon installed a two‑tier injection pattern using two‑part structural polyurethane:

1) Deep Depression Injections – 50 lb Points

At the worst depressions and along the down‑gradient side of the housing, we delivered higher‑volume shots (~50 lbs each). The mixed resin flows to low‑resistance areas and expands to close void pathways before locking grains together. These shots re‑established bearing beneath the most compromised zones and targeted the sub‑housing cavity with angled ports where access allowed.

2) Grid Stabilization – 20 lb Points

To tighten the matrix and prevent settlement from migrating outward, we installed a grid of 20 lb injections around the structure. This pattern treats the influence zone (top ~24–36 inches) that carries most of the drain’s load and resists future raveling.

Material & Delivery Advantages

• Lightweight cementitious fills—adds negligible dead load to soft ground.
• Moisture‑tolerant chemistry—reacts reliably in damp soils.
• Small ports (penny‑sized)—minimal surface repair.
• Rapid cure—resumes function quickly with limited site disruption.

Production Summary

• Total foam installed: ~280 lbs
• Injection locations: 14+ mapped points, combining 50‑lb deep‑depression injections and a 20‑lb grid pattern around the drain
• Access: Compact hoses and low‑profile gear suitable for pond embankments
• Acceptance criteria: Stabilization only; no lift or realignment attempted

Results & Benefits

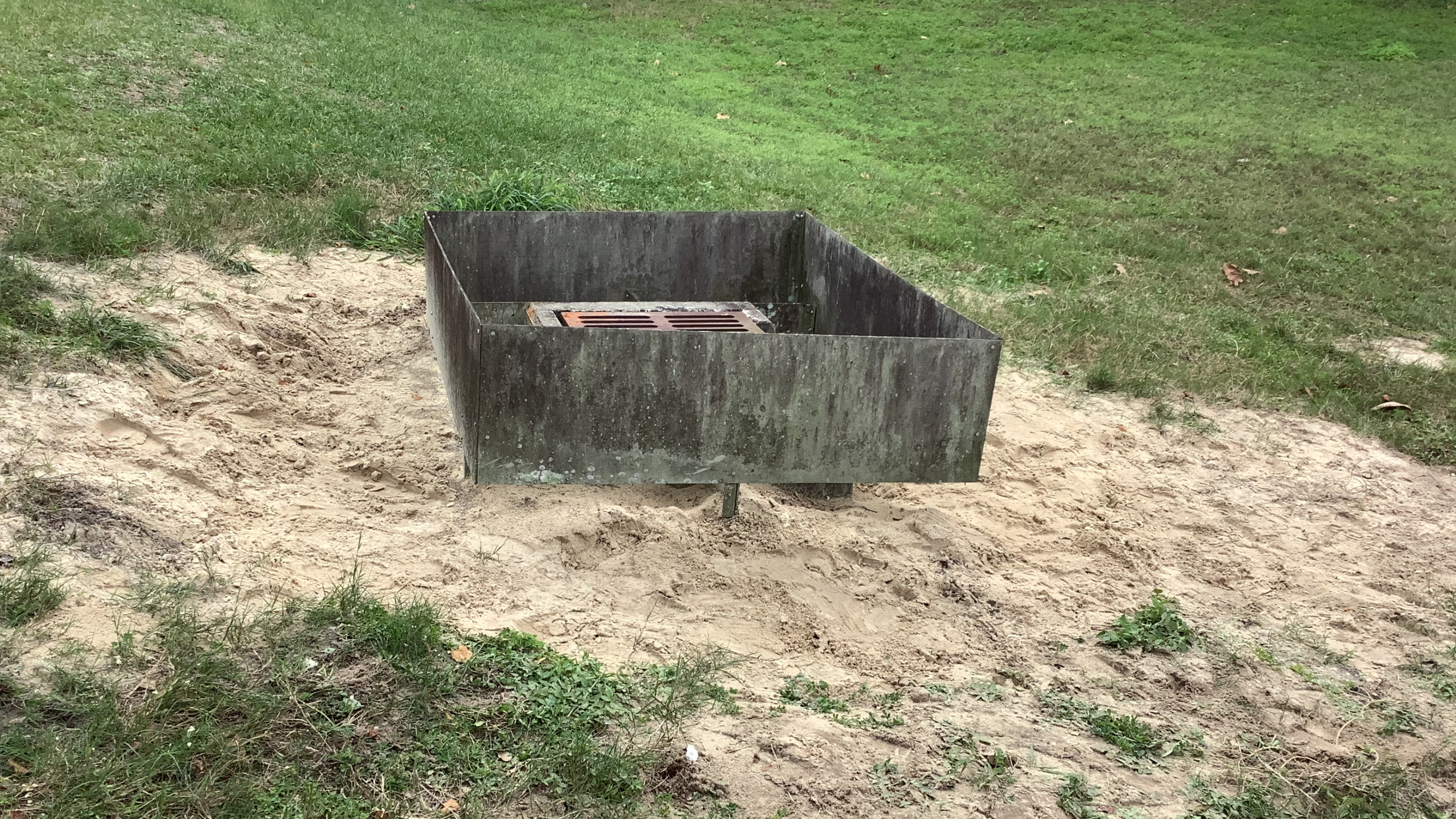

• Void closure & uniform support: Voids beneath and around the housing were filled, and soils re‑coupled, creating a continuous load path from the drain into the subgrade.
• Stabilization without lift: The drain stayed in its existing position; no realignment was attempted, preserving adjoining pipe integrity.
• Erosion mechanism interrupted: Foam-sealed soil pathways that had been enabling washout, reducing the chance of renewed undermining after storms.
• Low‑impact delivery: No excavation spoils, minimal footprint on the bank, and rapid cure for quick turnover to the owner.
• Documentation for records: Helicon provided a production log (locations, volumes) to support maintenance planning and future inspections.

Project FAQ

Why not pour concrete into the void?
Concrete is heavy; it can add dead load and worsen settlement. Structural polyurethane provides support with far less weight and seeks out hidden paths that rigid materials may miss.

Will the foam block the drain?
We verify the conveyance with camera inspection and stage injections away from open pipe paths. The chemistry is designed to react in soil voids, not into flowing water inside the pipe.

Can you guarantee no future settlement?
Stabilization stops the current mechanism at treated points. Future performance depends on drainage, flow energy, and maintenance. Keeping erosion controls in place is key.

Could we have lifted the housing?
Lifting was out of scope by the owner’s choice. In select cases, lift is possible but requires different acceptance criteria and risk management at pipe joints
